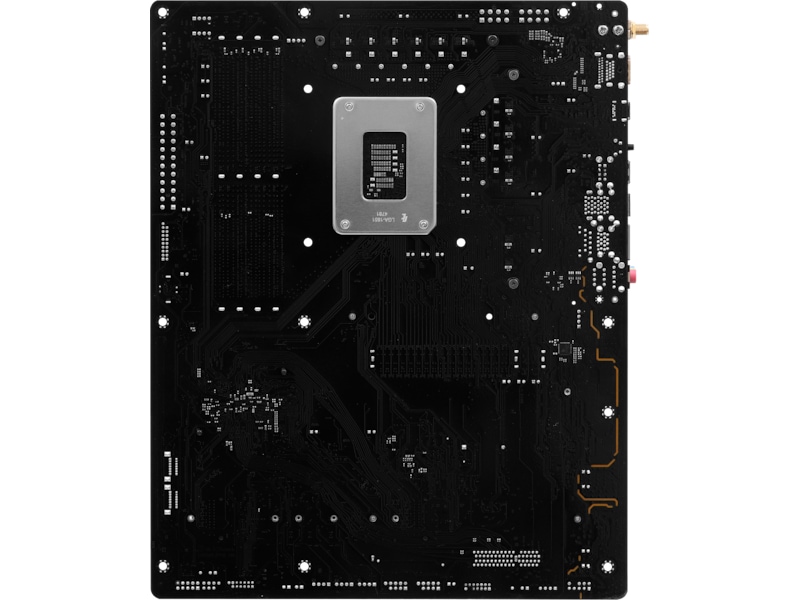

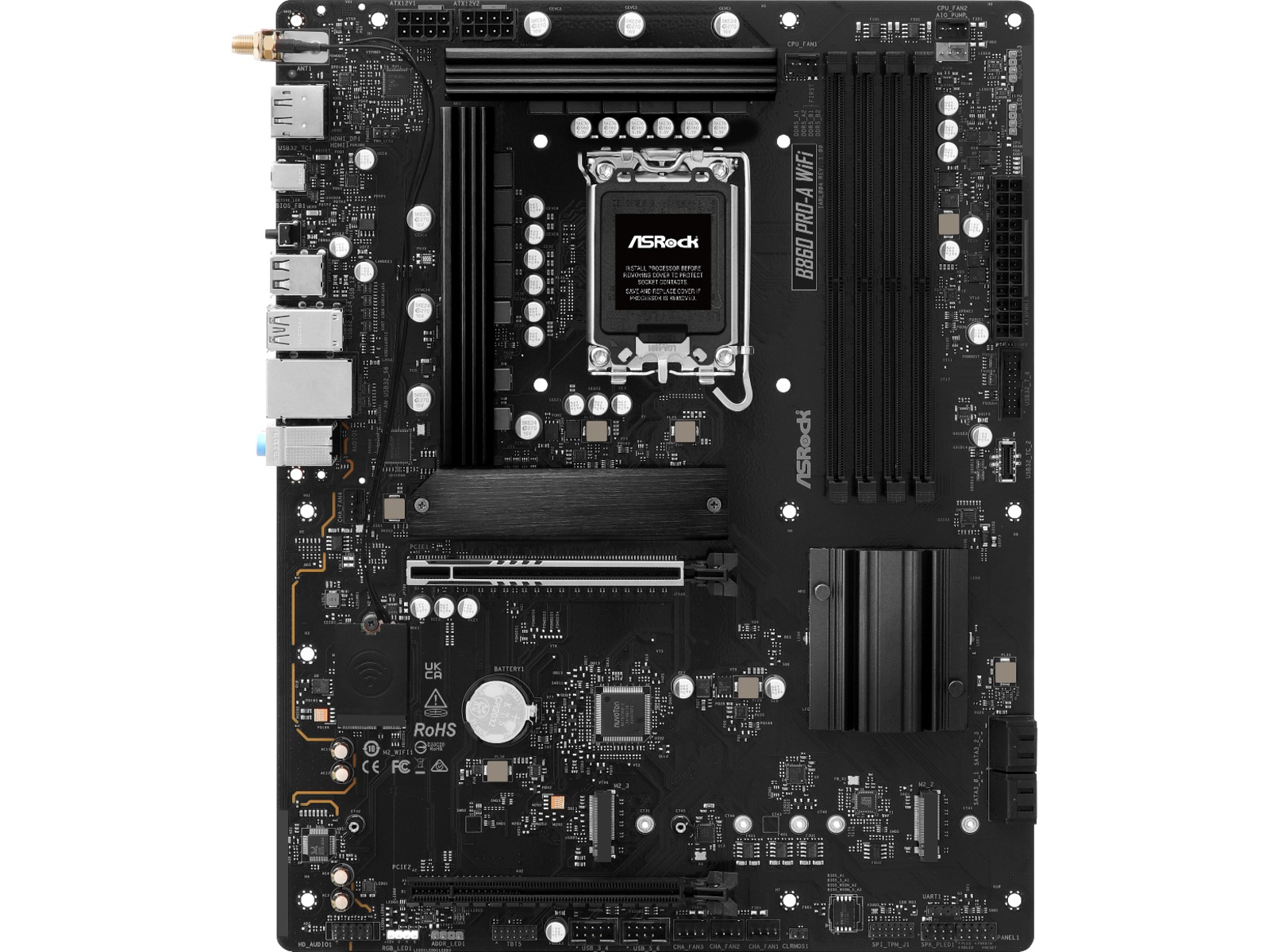

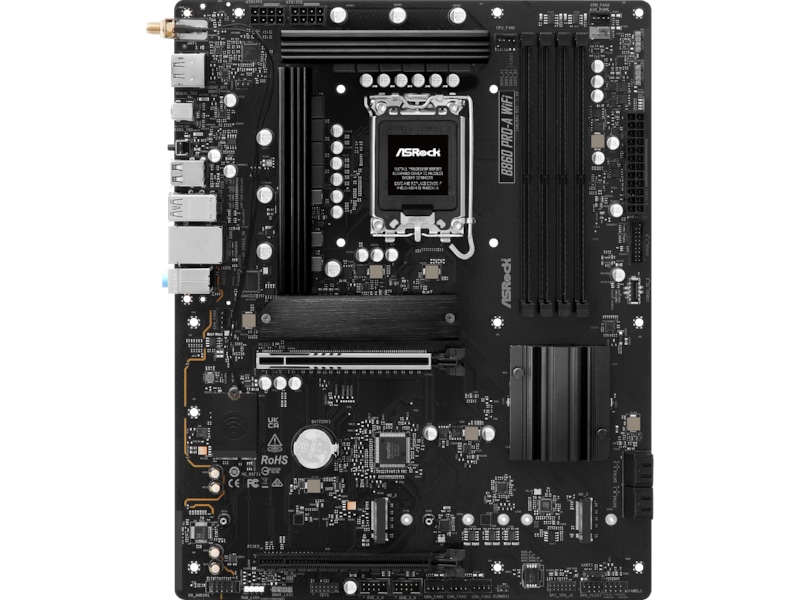

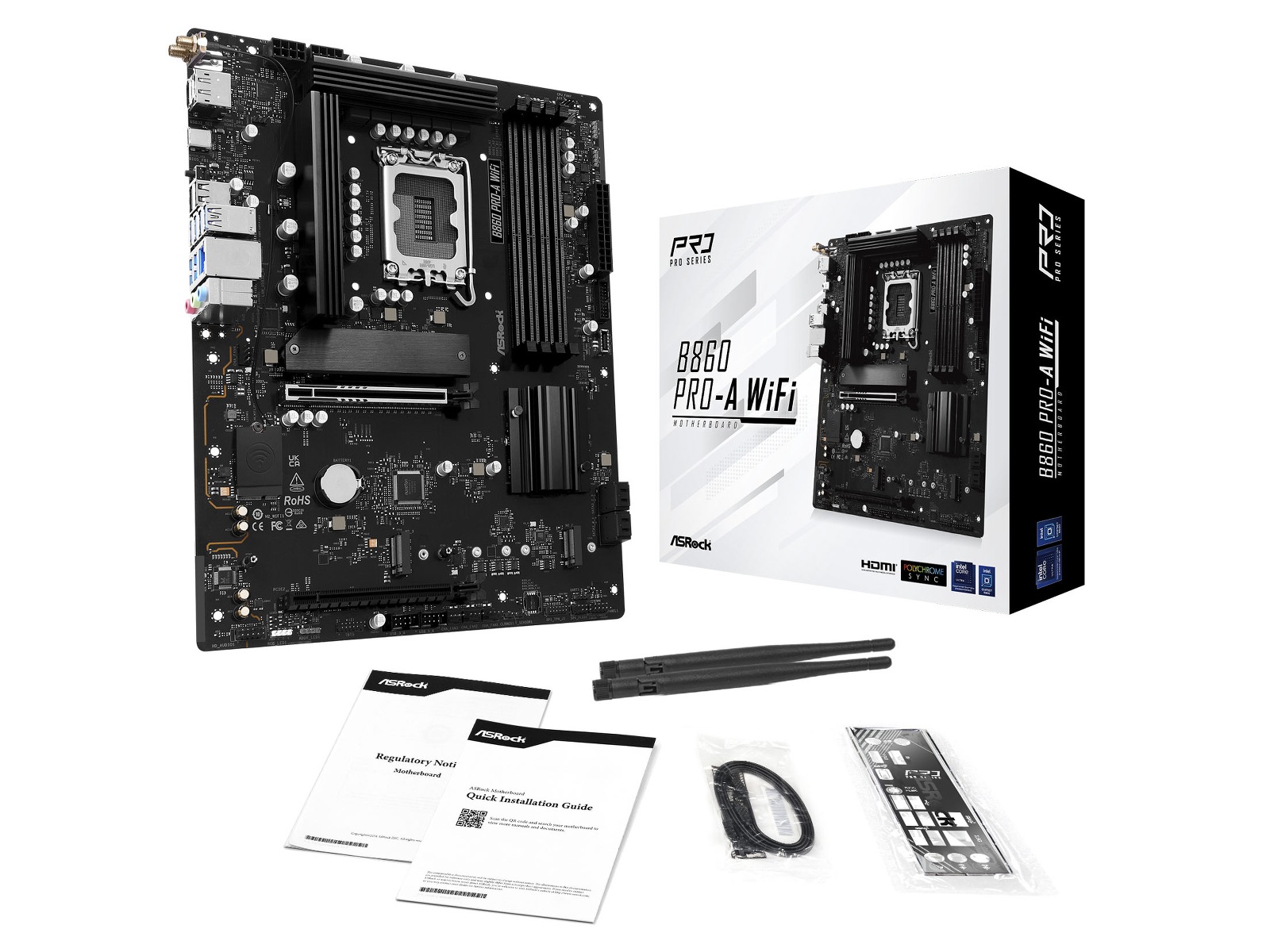

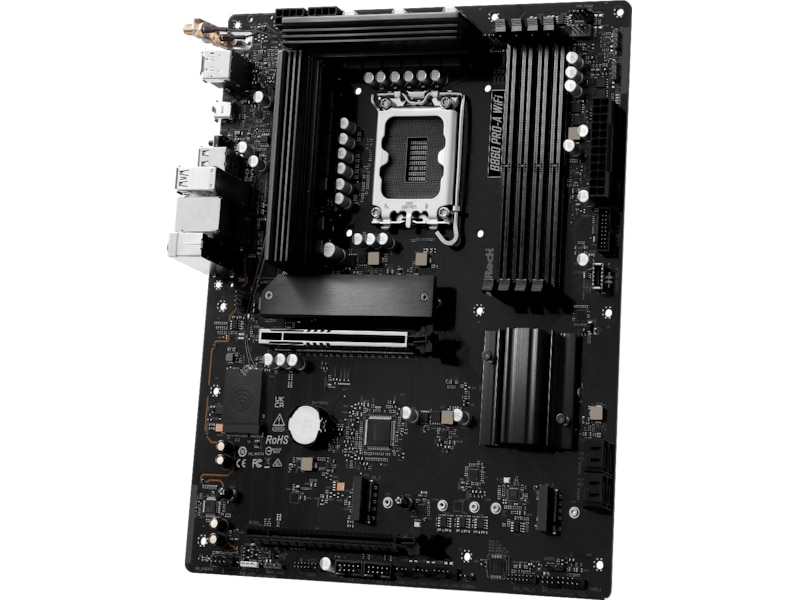

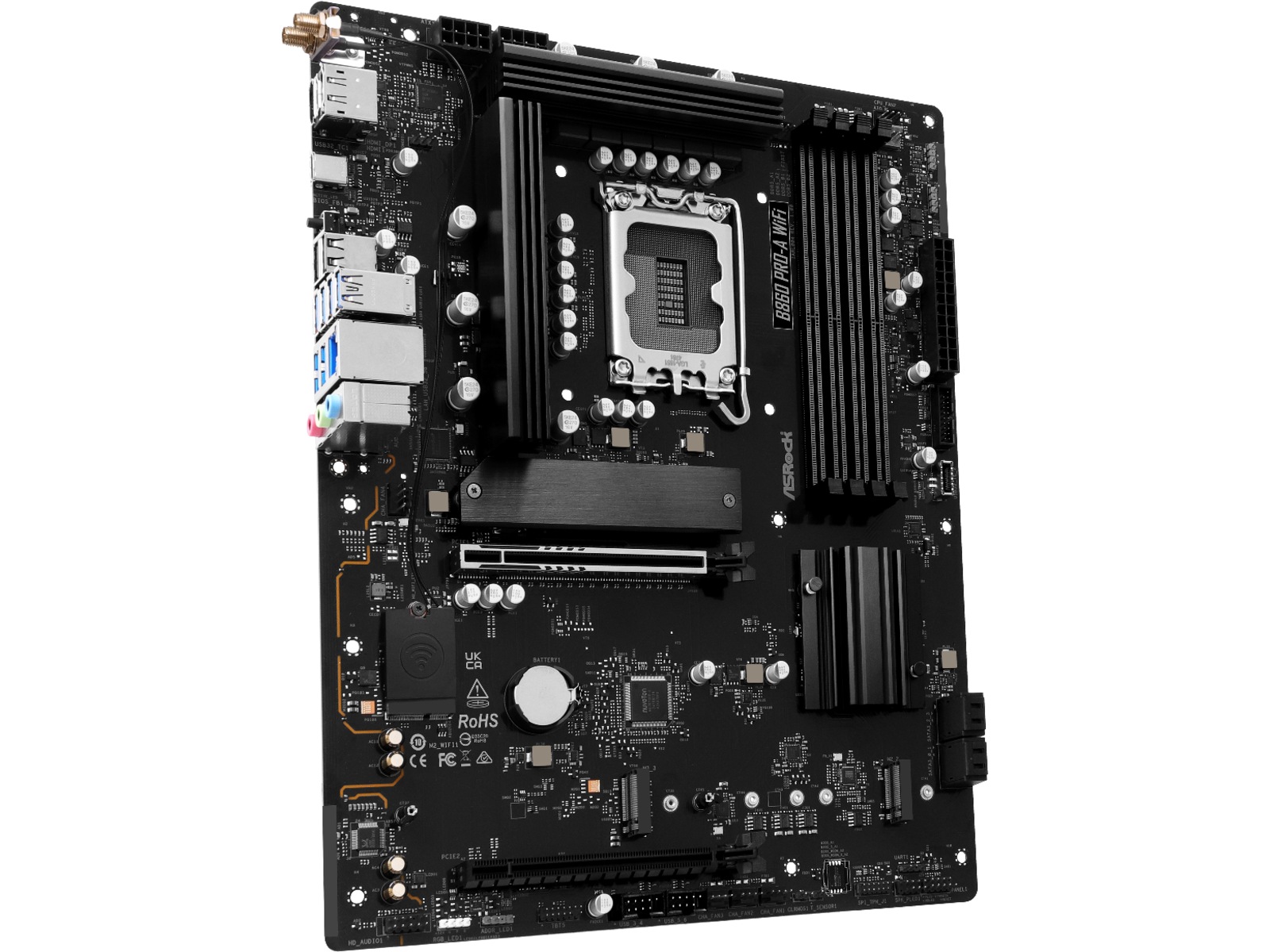

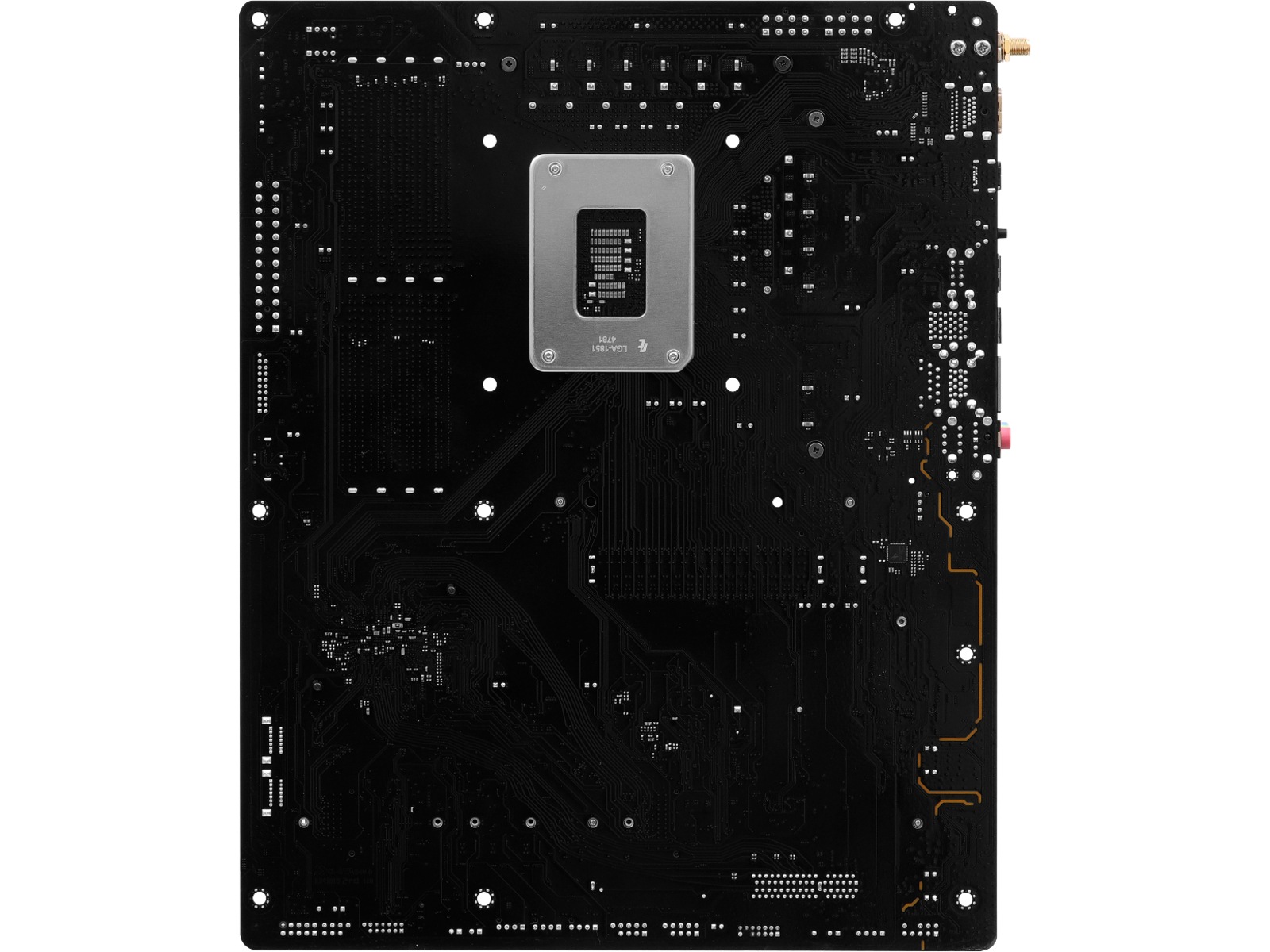

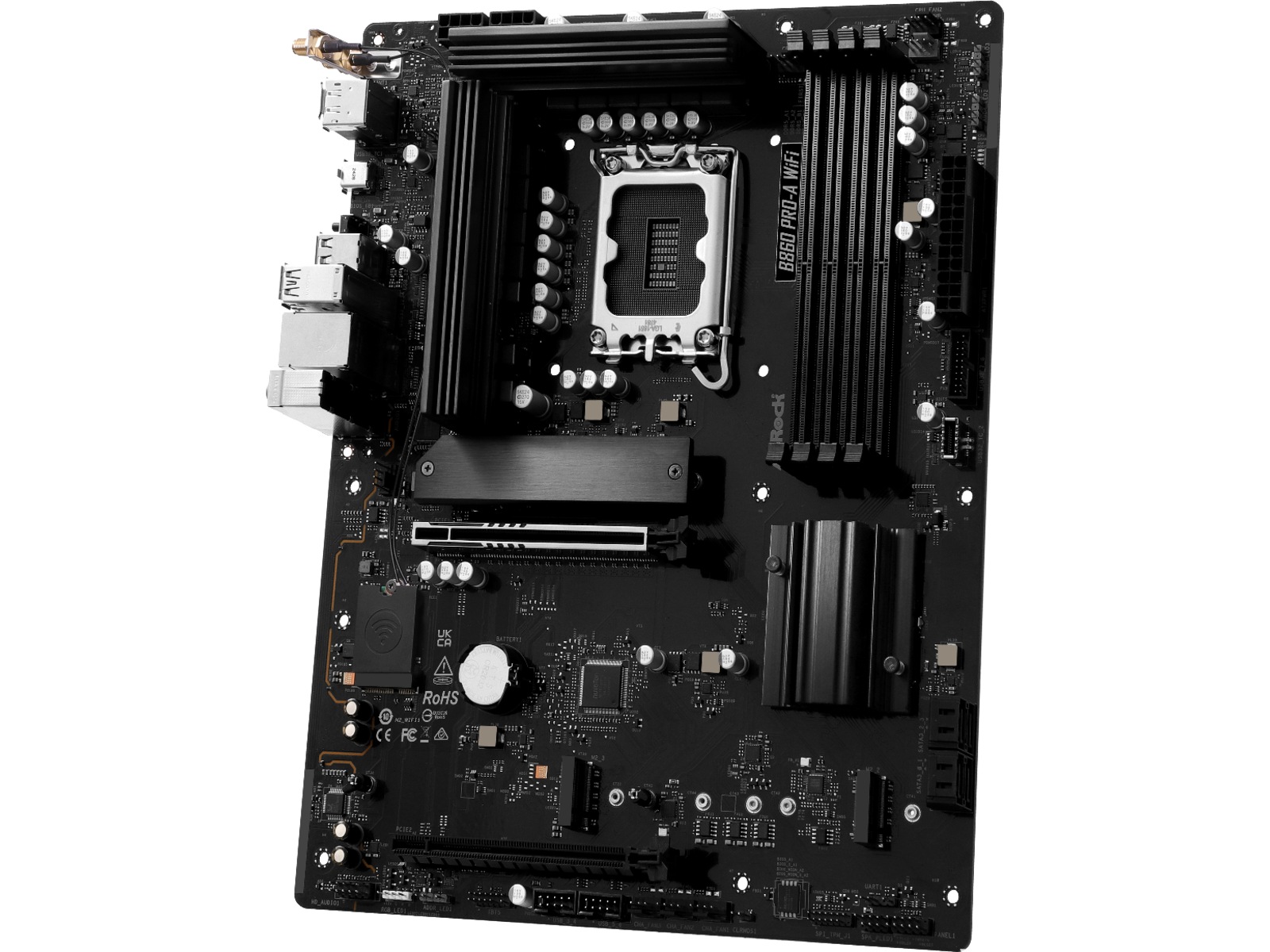

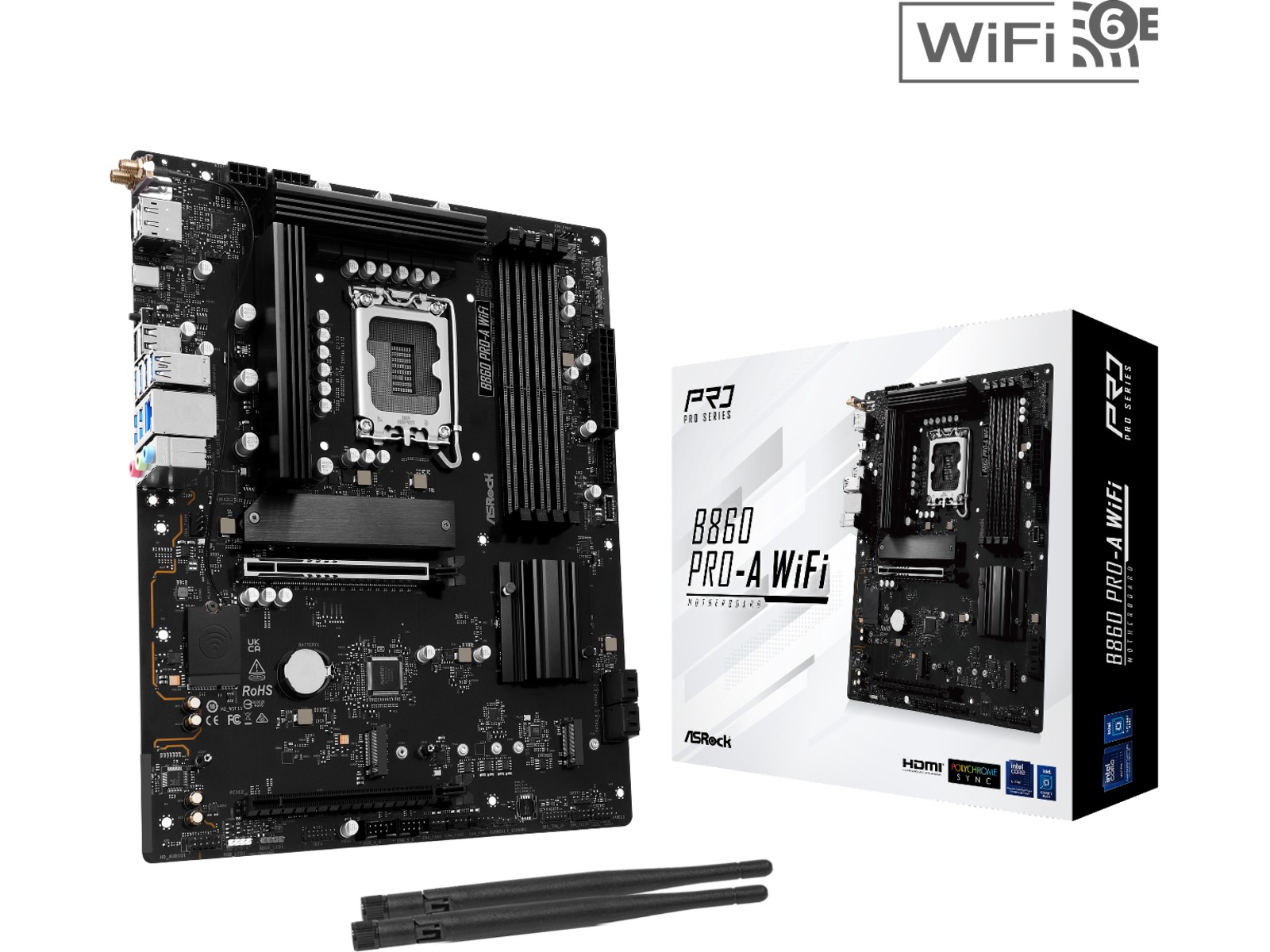

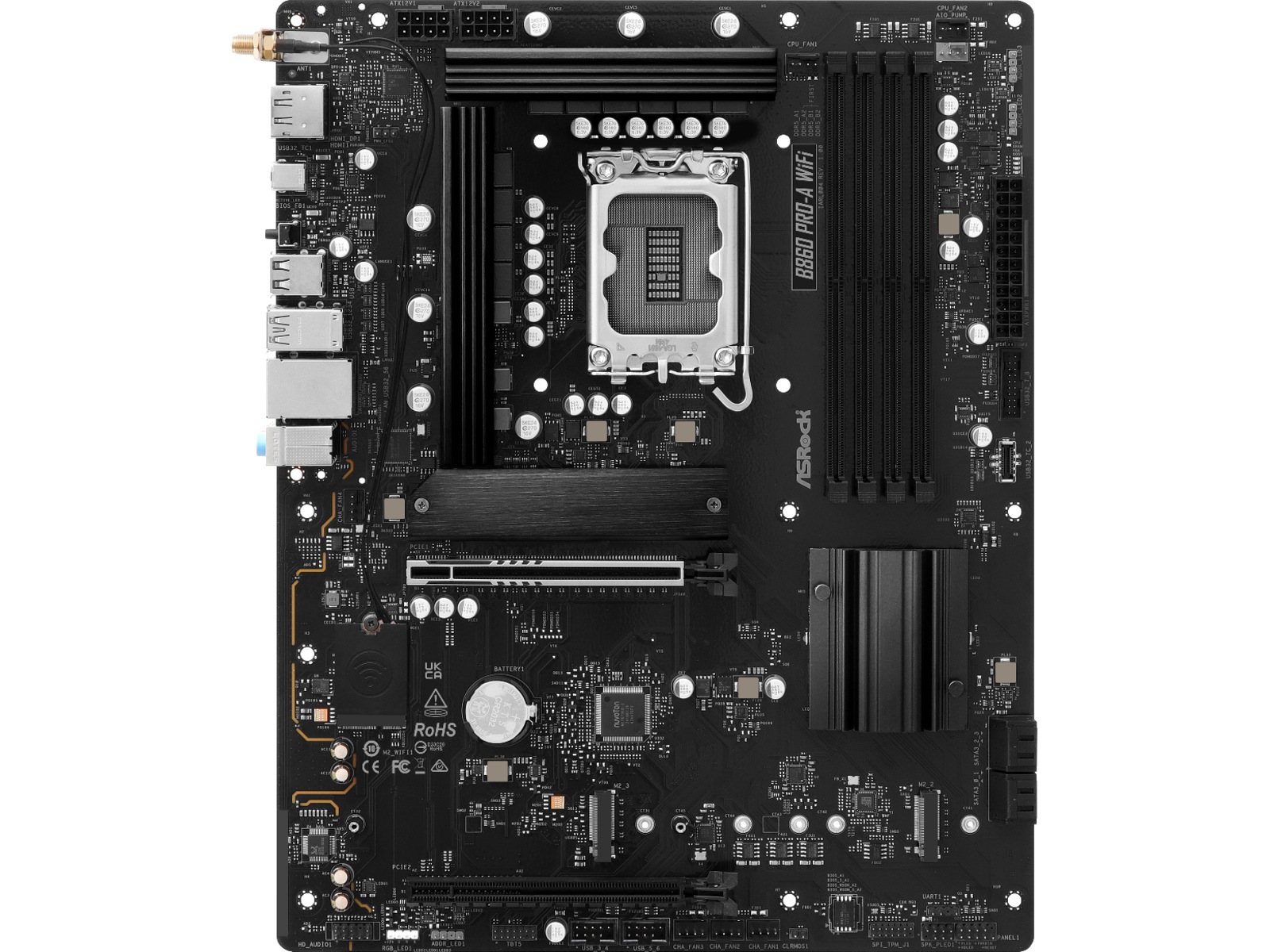

| Model | B860 Pro-A WiFi |
|---|---|
| Produktlinje | ASRock |
| Producentens garanti (måneder) | 36 |
| EAN | 4711581490253 |
| Model | Micro ATX |
|---|---|
| Kommentarer om kompatible processorer | Understøtter Intel Core Ultra-processorer (Serie 2) |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| Understøttet RAM-integritetskon | Ikke-ECC |
| RAM Slots | 4 DIMM åbninger |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Chipsættype | Intel B860 |
| Processor-socket | LGA1851 sokkel |
| RAM-hastighed understøttet | 6800 MHz (O.C.), 4400 MHz, 4800 MHz, 5600 MHz, 8666 MHz (O.C.), 5600 MHz (O.C.), 6533 MHz (O.C.) |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-egenskaber | UEFI BIOS |
|---|---|
| BIOS-type (Basic Input/Output System) | AMI |
| Hardware egenskaber | DIY Friendly Design, Intel Adaptive Boost Technology (ABT), 10+1+1+1+1 Power Phase Design, ASRock FAN-Tastic Tuning, ASRock Full HD UEFI, ASRock Polychrome RGB, Intel Turbo Boost Max Technology 3.0, Dr.MOS MOSFET, ASRock EZ Mode, Aluminiumkølelegemedesign, VRM kølelegemedesign, ASRock Instant Flash, Intel Hybrid Technology, Nahimic Audio Enhacer, Præmonteret I/O-skjold, ASRock Auto Driver Installer, Intel Thermal Velocity Boost (TVB), ASRock My Favorites in UEFI |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C 3.2 Gen 2x2 + 6 x USB 3.2 Gen 1 + 2 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 USB 2.0 |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Blazing M.2 |
| Lagring | Blazing M.2 socket, Hyper M.2 socket, Serial ATA-600 (RAID) |
| USB/FireWire | USB-C 3.2 Gen 1, USB-C Gen 2x2, USB 3.2 Gen 1 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Type | Lydkort |
|---|---|
| Audio codec | Realtek ALC897 |
| Overensstemmelsesstandarder | High Definition Audio |
| Audio | High Definition Audio (8 kanaler) |
| Bluetooth | Yes |
|---|---|
| Netværk controller | Dragon RTL8125BG |
| Dataforbindelsesprotokol | Ethernet, IEEE 802.11ac, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet, Fast Ethernet, IEEE 802.11ax (Wi-Fi 6E), Gigabit Ethernet, Bluetooth 5.3, IEEE 802.11n, IEEE 802.11b |
| Netværk | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Produkttype | Bundkort |
|---|---|
| Overensstemmelsesstandarder | ErP Ready, EuP Ready, FCC |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0 |
|---|
| Ekspansionsåbninger | 2 x M.2 socket (2280 M.2 Key M-åbning), 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M åbning), 1 x PCIe 5.0 x16, 1 x CPU, 4 x DIMM 288-pins, 1 x M.2 socket (Key E, til trådløs modul), 1 x PCIe 4.0 x4 |
|---|
| Grænseflade (lagring) | PCIe 4.0 -stikforbindelser: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -stikforbindelser: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|

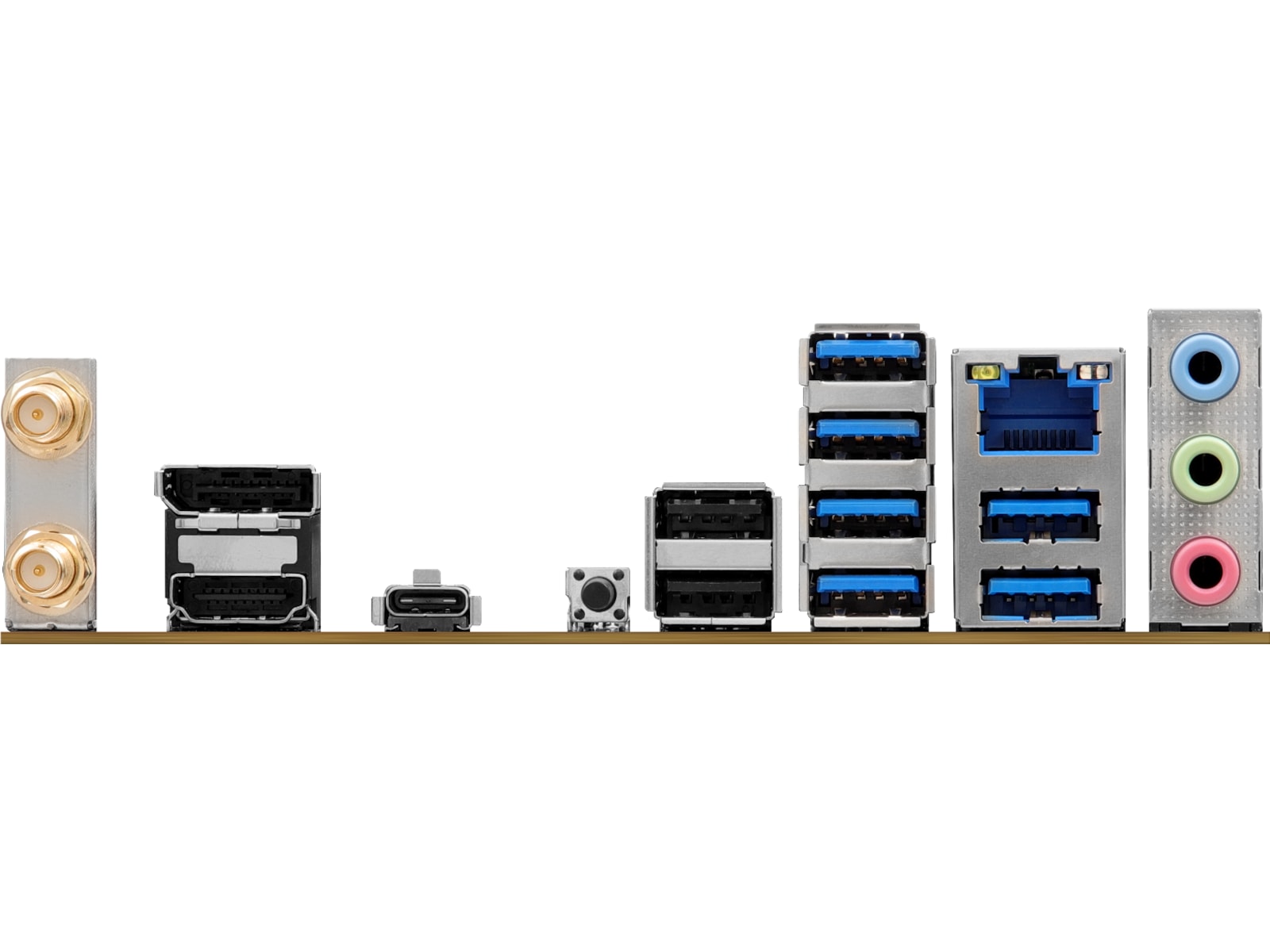

| Interface | 2 x USB 2.0, 1 x DisplayPort, 1 x højttaler - mini-jack, 1 x audio linje-ind - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 2 x antenne, 1 x HDMI, 1 x mikrofon - mini-jack, 1 x USB-C 3.2 Gen2x2, 6 x USB 3.2 Gen 1 |
|---|
| Interne interfaces | 2 x USB 3.2 Gen 1 - intern stik, 1 x USB-C 3.2 Gen 1 - intern stik, 4 x USB 2.0 - intern stik, 1 x SPI - intern stik, 1 x audio - intern stik |
|---|
| Software inkluderet | Drivers & Utilities, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning, ASRock Polychrome SYNC |
|---|
