Denne vare findes ikke længere i vores sortiment. Brug søgefunktionen øverst på siden.
Varenummer: 1319121 / Producentens varenr: MPE-A501-AFCAG-3EEU

More pictures from

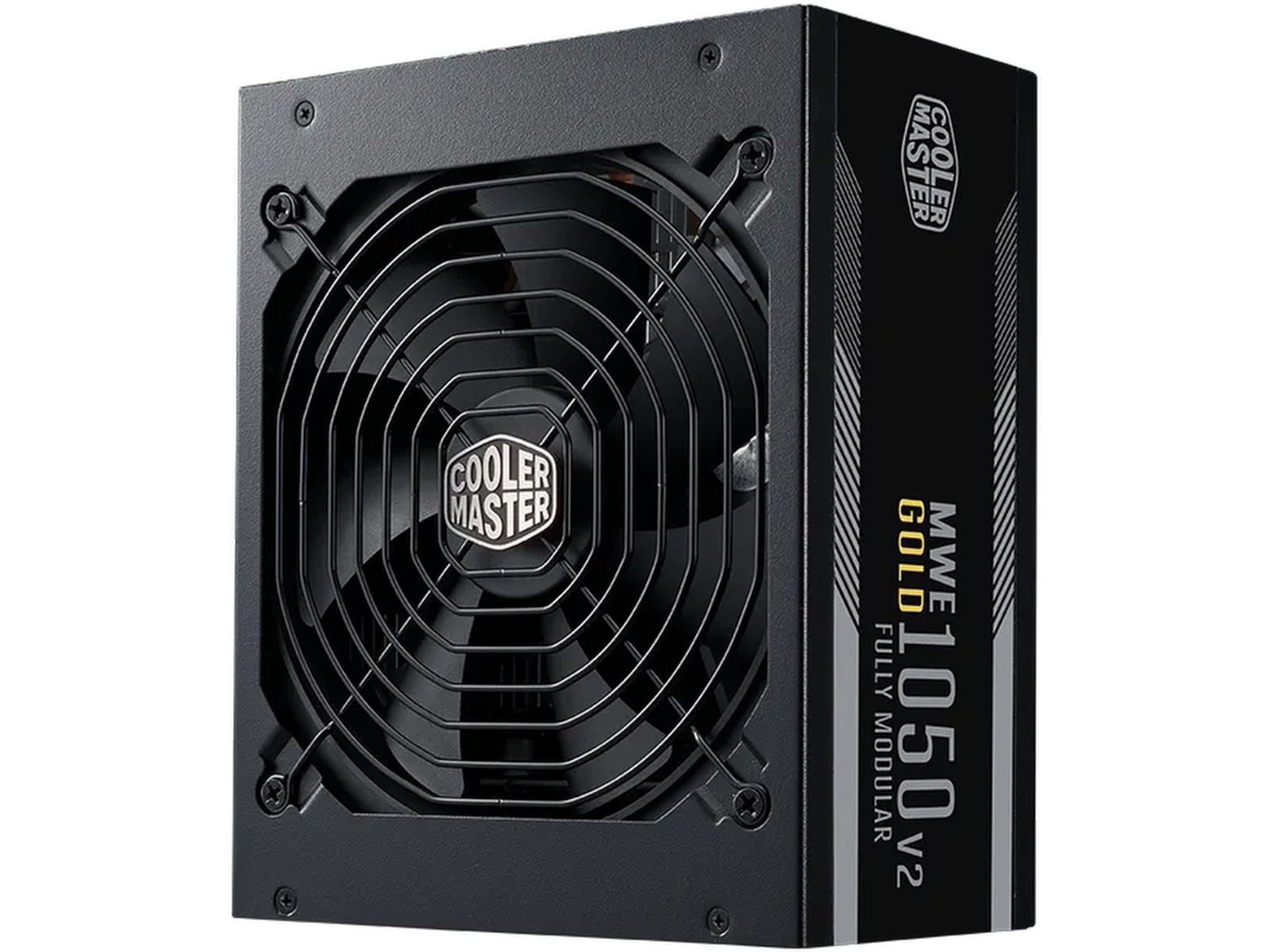

Cooler Master MWE Gold 1050W V2

Connect the Future, connect ATX 3.1

100% ATX 3.1 Compatible

Cooler Master took the initiative and continuously developing our first ATX 3.1 Power Supply lineup. Compliant with ATX 3.1 standard and 12V-2x6 connectors, the MWE Gold 1050/1250 V2 ATX 3.1 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.

80 PLUS Gold Certified

Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 V2 ATX 3.1 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.

Quiet Cooling

The MWE Gold 1050/1250 V2 ATX 3.1 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing (FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System (STCM), the fan will not spin until at 40% of rated output power to reduce noise.

Industrial-grade Temperature Resilience

The MWE Gold 1050/1250 V2 ATX 3.1 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.

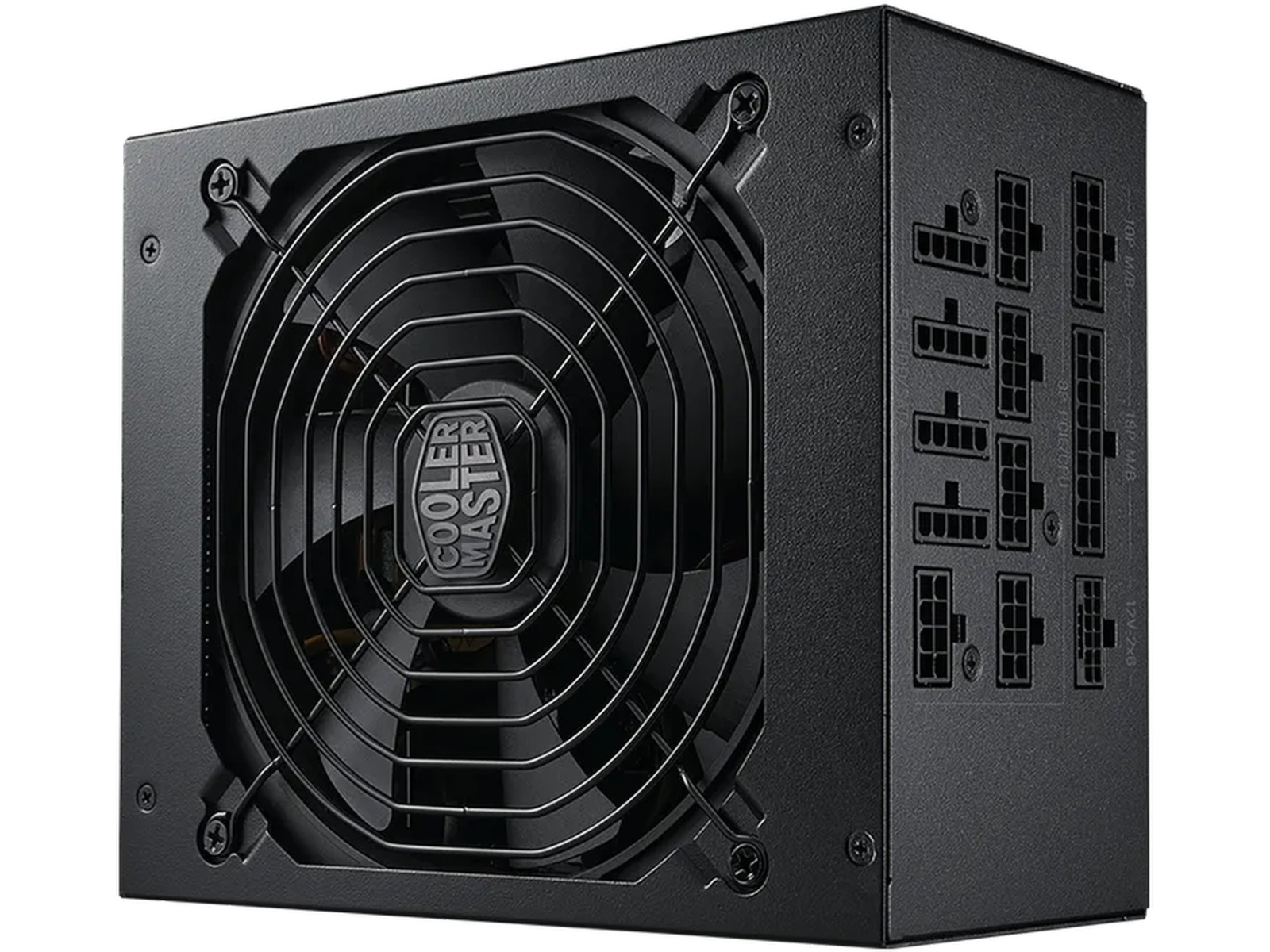

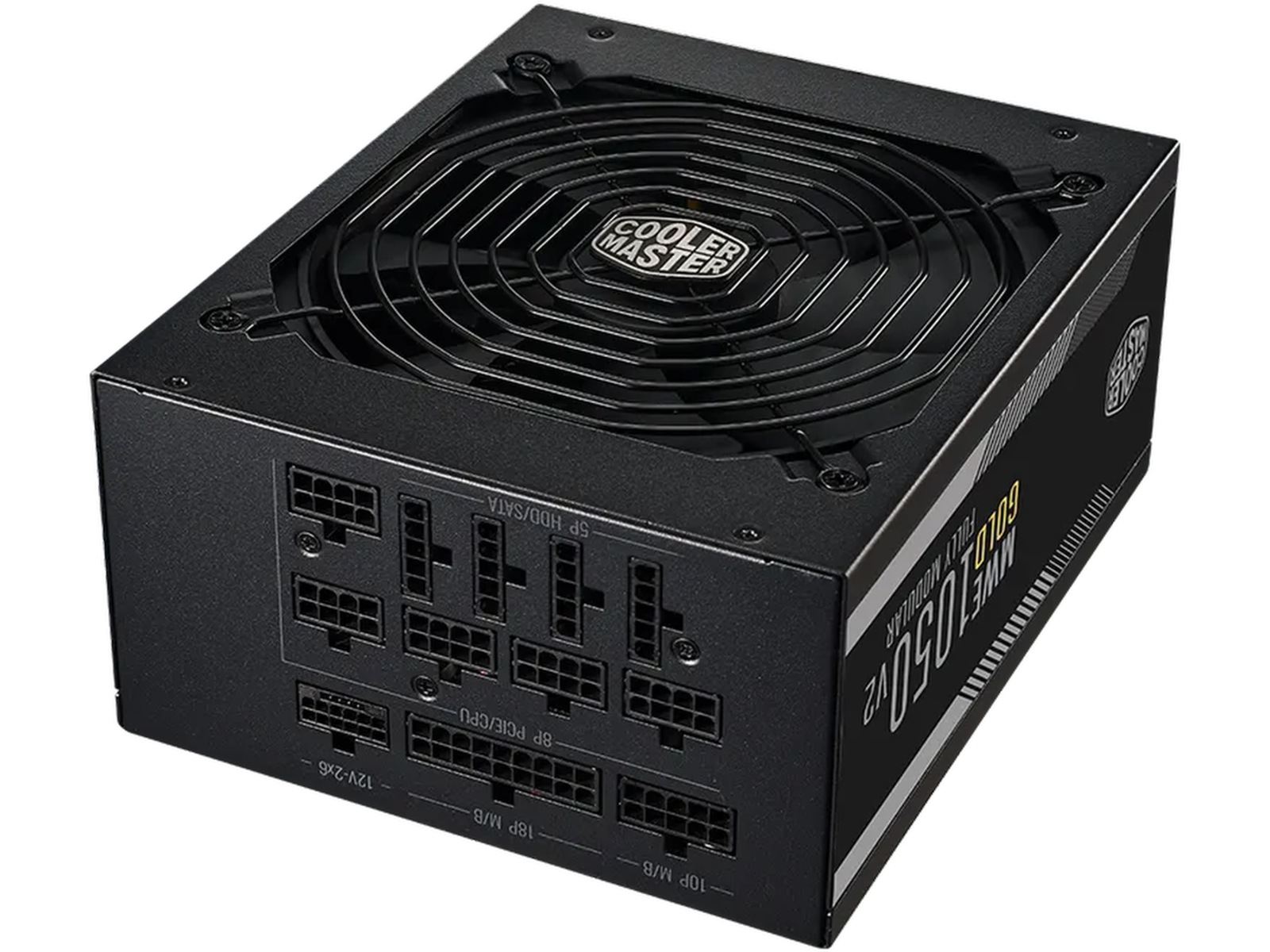

Fully Modular Cabling

The fully modular version of the MWE Gold 1050/1250 V2 ATX 3.1 comes with a set of flat black cables that can be customized to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling.

Generelt
Produktlinje Cooler Master MWE Gold V2
Model 1050
Produkttype Strømforsyning
Underkategori Netaggregater
Producentens garanti (måneder) 120
EAN 4719512151013
Strømenhed
80 PLUS certificering 80 PLUS Gold
Effektivitet 90%
Korrigering af strømfaktor Aktiv Power Factor Correction (PFC)
Modulær Kabel Administration Yes
Specifikationsoverensstemmelse ATX12V 3.1/ EPS12V
PSU formfaktor ATX
Nødvendig frekvens 50 - 60 Hz
Formfaktor Intern
Strømtilførsels kapatibilitet PC/Server
Effekt 1050 Watt
Forsynet spænding +3.3, +5, ±12 V
Nødvendig spænding AC 100-240 V
Kølesystem 140 mm ventilator
Strømenhedsfunktioner Beskyttelse mod overophedning, Beskyttelse mod overstrøm, Køleblæser med dobbelt kugleleje, Inrush-beskyttelse, Overspændingsbeskyttelse, Kortslutnings beskyttelse, Fuld modulær, Overbelastningsbeskyttelse, Beskyttelse mod underspænding
Diverse
MTBF (forventet tid mellem fejl) 100,000 timer
Farvekategori Sort
Overensstemmelsesstandarder BIS, CCC, FCC, EAC, TUV, UKCA, RCM, cTUVus, ErP 2014, BSMI
Mål og vægt
Dybde 18 cm
Vægt 2.93 kg
Bredde 15 cm
Højde 8.6 cm
Mål & vægt (forsendelse)
Højde ved forsendelse 12.2 cm
Vægt ved forsendelse 3.36 kg
Bredde ved forsendelse 33.3 cm
Dybde ved forsendelse 19.7 cm
Miljømæssige parametre
Maks. driftstemperatur 50 °C
Min. driftstemperatur 0 °C
Kabeloplysninger
Medfølgende ledninger 16-pin 12VHPWR strøm modulær kabel 65 cm, AC-strømkabel, Strøm 24 pin ATX modulært kabel 65 cm, Strøm 8 pin EPS12V med aftagelig 4 pin ATX12V sektion modulært kabel 65 cm, 3 x 15 pin Serial ATA strøm modulært kabel 86 cm, 4 pin strøm modulært kabel 86 cm, Strøm 8 pin EPS12V modulært kabel 65 cm, 3 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 55 cm

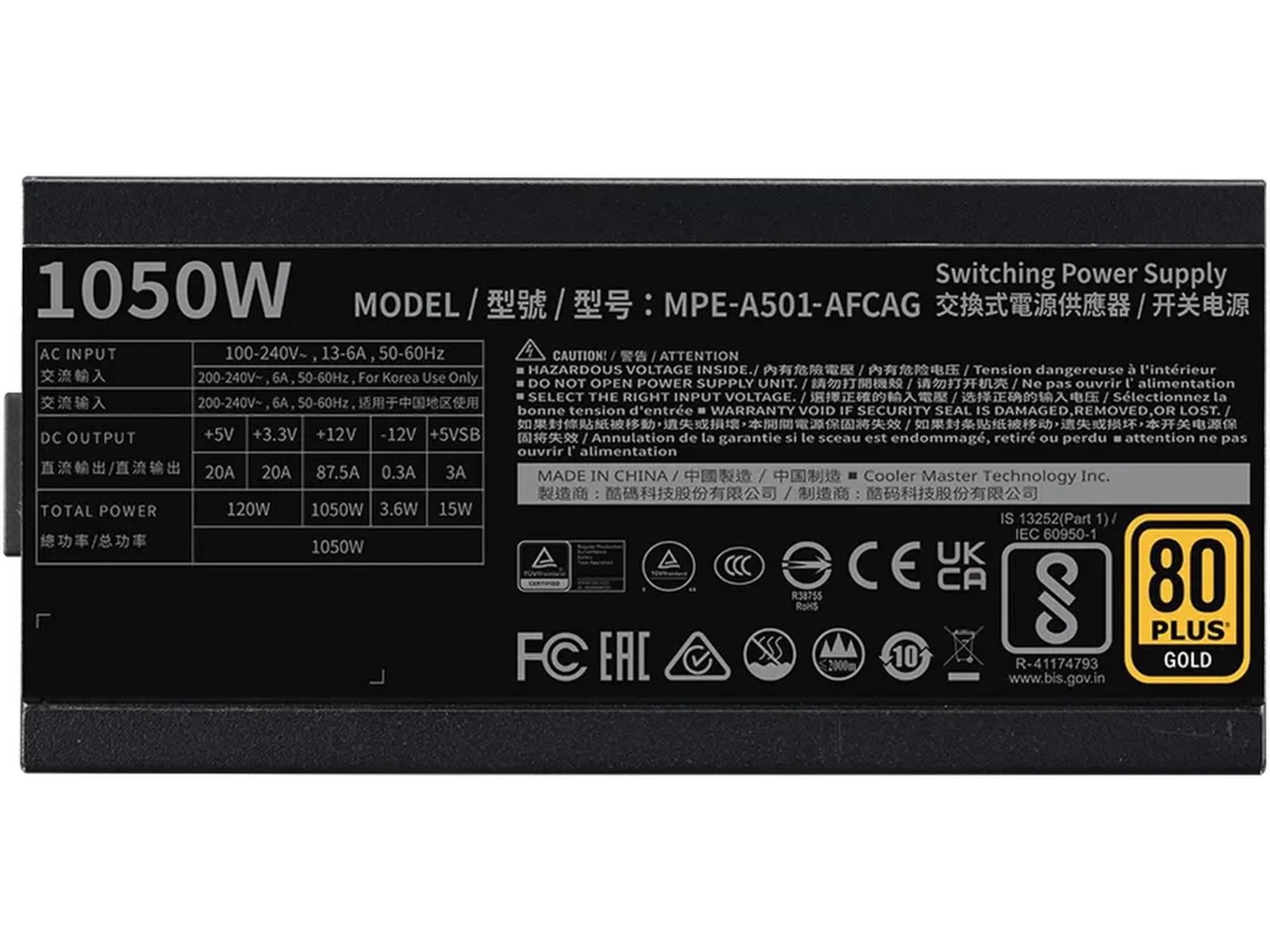

Output Current
Output Current -12V - 0.3 A, +5VSB - 3 A, +3.3V - 20 A, +12V - 87.5 A, +5V - 20 A
Detaljer om strømudgangskonnektorer
Detaljer om strømudgangskonnektorer 4 x 4-PIN intern strøm, 1 x strøm 8 pin EPS12 V, 12 x 15 pin Serial ATA strøm, 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion, 1 x strøm 24 pin ATX, 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion, 1 x 12VHPWR

Cooler Master MWE Gold 1050W V2 PSU

Varenummer: 1319121 / Producentens varenr: MPE-A501-AFCAG-3EEU
