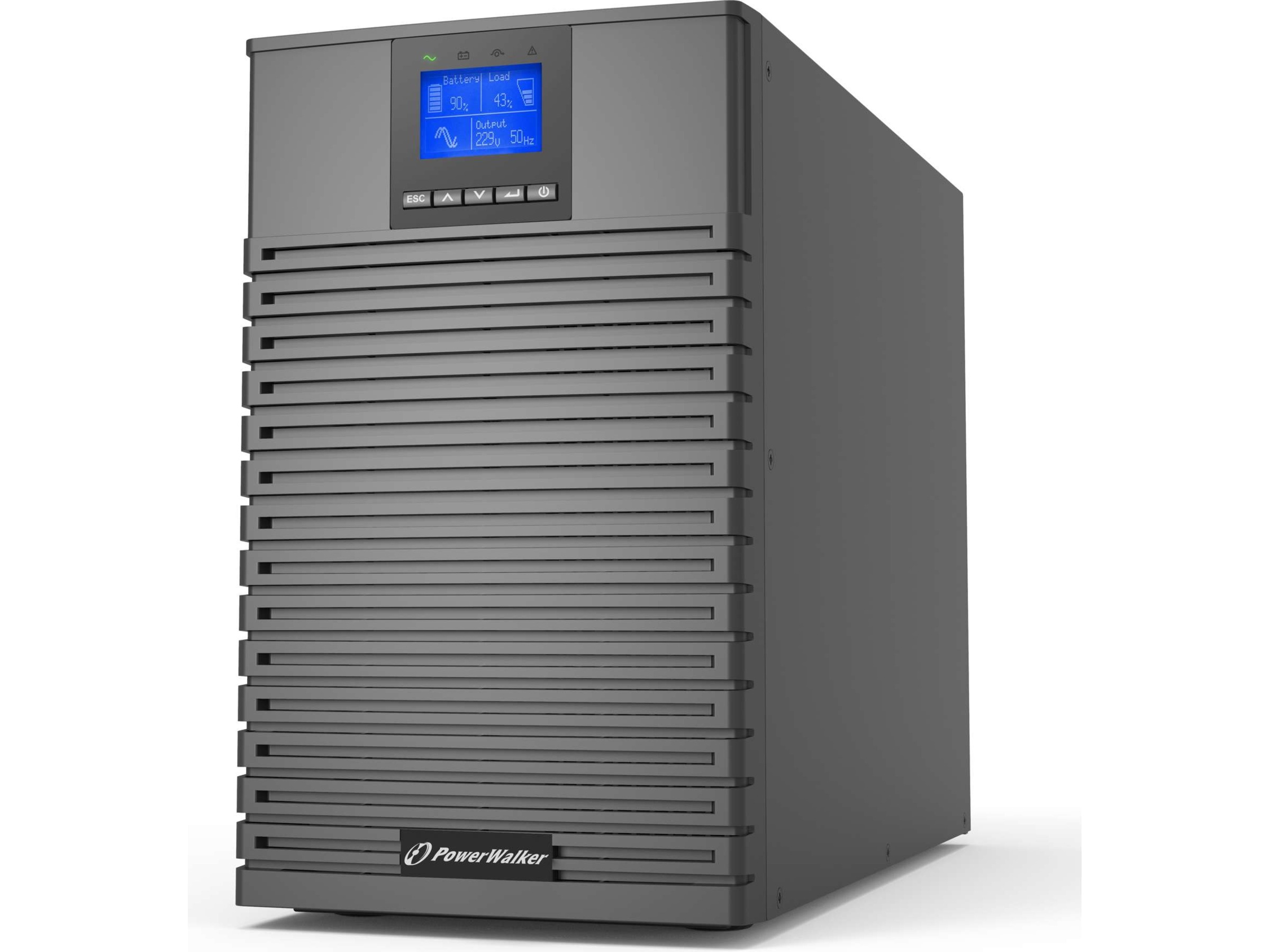

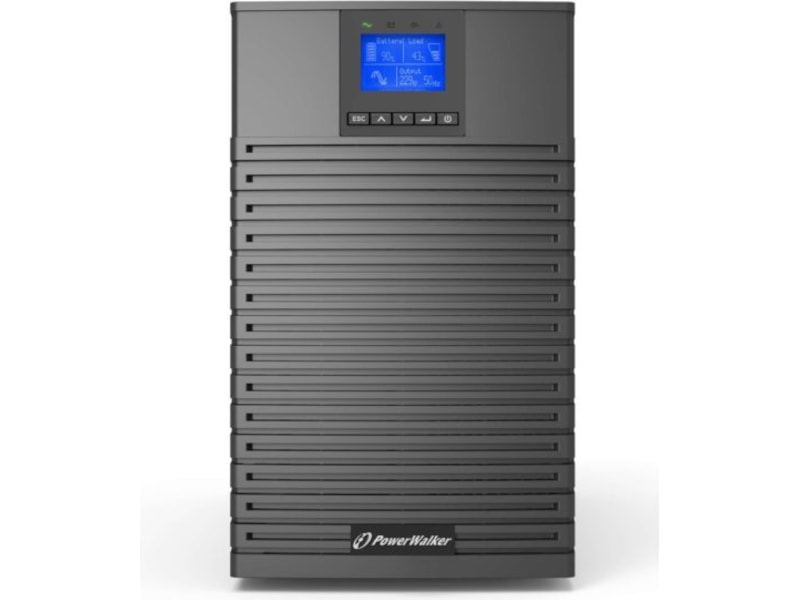

BlueWalker PowerWalker VFI 3000 ICT IoT
1328444
1328444
4260074982862
10122195
BlueWalker PowerWalker VFI 3000 ICT IoT
PowerWalker Flagship Solution / Bestseller!
IoT Solution with the PW-WinPower App
Output Power Factor 1.0
Optimized Battery Management (OBM) – for longer Battery Life
EBM Auto-Detection for easy setup of External Baterry Packs
Multifunctional-LCD
Built-in ethernet port offers Modbus TCP/ IP
Internet Options: LAN Cable or WLAN Dongle
The PowerWalker VFI 1000-3000 ICT IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly regardless of time and place. This cloud based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis.
This UPS series utilizes double conversion (Online) technology and features unity power factor, ensuring the availability of your mission critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS.
Generelt
Model
VFI 3000 ICT IoT
Produktlinje
PowerWalker
Produkttype
UPS
Underkategori
UPS
Producentens garanti (måneder)
24
EAN
4260074982862
Udvidelsesåbninger
Ekspansionsåbninger
1 (total) / 1 (fri) x Intelligent Slot
Programmer
Type
Winpower
Strømenhed
Strøm Kapacitet (VA)
3000 VA
Indgangforbindelsesstype
Strøm IEC 60320 C20
Nødvendig frekvens
45 - 55 / 54 - 66 Hz
UPS-teknologi
On-line
Strømfaktor (PF)
0.99
Transfertid
0 ms
Formfaktor
Ekstern
Total harmonisk forvrængning (THD)
5 %
Forsynet spænding
AC 200/208/220/230/240 V
Antal indgangforbindelser
1
Indgangspændingsområde
AC 160 - 300 V
UPS udgang waveform
Sinewave
Effektivitet
93% at 100% Load
Effekt
3000 Watt
Antal udgangskontakter
9
Forsynet spændingsmargen
± 1%
Strømenhedsfunktioner
Nødstrøm slukket, Human Interface Device (HID) support, LCD-skærm, Overbelastningsbeskyttelse
Batteri
Forsynet spænding
12 V
Genopladningstid
3 timer
UPS
Antal batterier
6
Batterikapacitet
9 At
Diverse
Farvekategori
Grå
Mål og vægt
Vægt
26.4 kg
Bredde
19.2 cm
Dybde
42.8 cm
Højde
31.8 cm
Mål & vægt (forsendelse)
Vægt ved forsendelse
28.9 kg
Højde ved forsendelse
47.5 cm
Bredde ved forsendelse
59 cm
Dybde ved forsendelse
33 cm
Miljømæssige parametre
Lydudbredelse
50 dB
Fugtighedsgrad ved brug
0 - 95% (ikke-kondenserende)
Maks. driftstemperatur
45 °C
Min. driftstemperatur
0 °C
Netværk
Grænseflade til fjernstyring
RS-232, USB, Ethernet
Interface leveret
Interface
1 x administration (RS-232), 1 x EPO (emergency power off), 1 x administration (USB)
Kabeloplysninger
Medfølgende ledninger
USB-kabel - ekstern, 2 x strømkabel (IEC) - ekstern
