ATEN MasterView CS-1762 2P DVI/USB

Varenummer: 309169 / Producentens varenr: CS1762A-AT-G

More pictures from

Fullwidth media container description

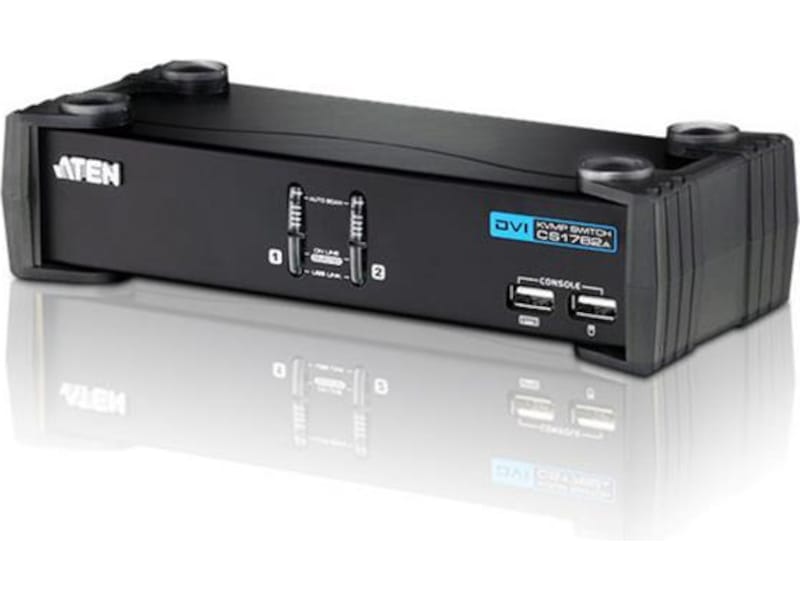

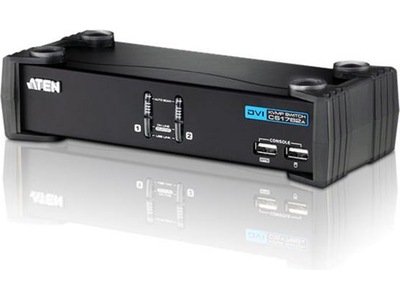

Aten CS1762A

2-Port USB DVI KVMP™ Switch

The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.

As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.


  • One USB console controls two DVI computers and two additional USB 2.0 devices
  • 2-port USB 2.0 hub built in
  • Fully compliant with the USB 2.0 specification

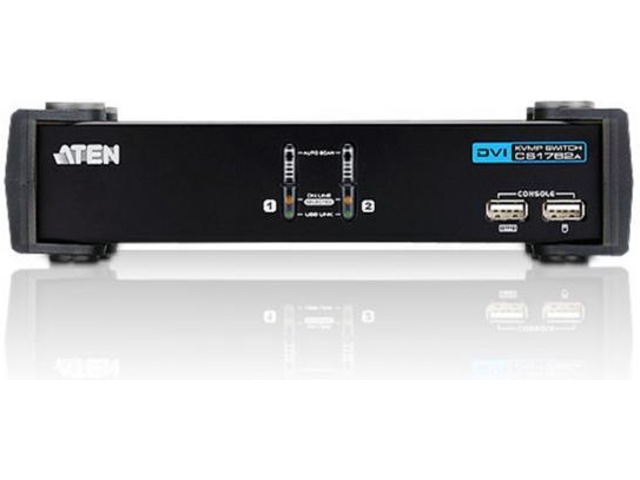

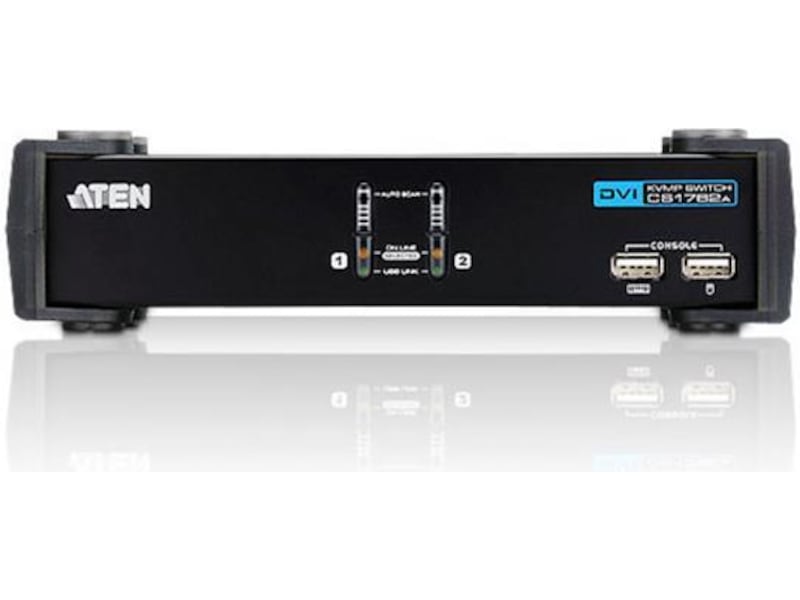

  • Computer selection via front panel pushbuttons, hotkeys, and mouse
  • Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Supports widescreen resolutions
  • Superior video quality – 1920 x 1200
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support – fully compliant with the DVI specifi cations
  • HDCP compatible
  • Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
  • Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation
  • Multilingual keyboard mapping – supports English, Japanese, and French keyboards
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable
Fullwidth media container description

Package Contents

  • 1x CS1762A USB 2.0 DVI KVMP™ Switch
  • 2x Custom KVM Cable Sets (DVI-D)
  • 1x Power Adapter
  • 1x User Instructions
Producentens garanti (måneder) 24
Enhedstype KVM / audio-switch - 2 porte
Pakningstype Desktop
Undertype KVM
Porte 2 x KVM / audio
Antal KVM lokalbrugere 1 lokalbruger
Tastatur / Musse Grænseflade USB
Maksimum opløsning 1920 x 1200
Egenskaber Indbygget 2-ports USB 2.0-hub
Indbygget udstyr USB-hub
Ekspansion / Konnektivitet
Interface 2 x DVI-I
2 x USB Type B
2 x audio mini-jack
1 x DVI-I
1 x tastatur (USB) Type A
1 x mus (USB) Type A
Strømenhed Ekstern strømforsyning
Medfølgende ledninger 2 x tastatur- / mus- / videokabel
Overensstemmelsesstandarder RoHS
Programmer / Systemkrav
OS nødvendig Apple MacOS, SunOS, Linux, Microsoft Windows
Mål og vægt
Bredde 21 cm
Dybde 8.7 cm
Højde 5.5 cm
Vægt 0.73 kg
Miljømæssige parametre
Min. driftstemperatur 0 °C
Maks. driftstemperatur 50 °C
Fugtighedsgrad ved brug 0 - 80 % (ikke-kondenserende)
Min. lagertemperatur -20 °C
Maks. Opbevaringstemperatur 60 °C
