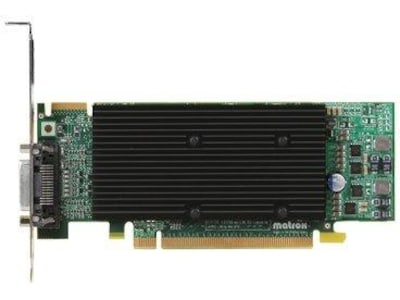

Matrox M9120 Plus 512MB DDR2

PCI-Express 16x, LHF-60 to 2x SL-DVI-I, Lav profil, passiv køling

Varenummer: 360344 / Producentens varenr: M9120-E512LPUF

More pictures from Matrox M9120 Plus 512MB DDR2

Fri fragt
Bestillingsvare, bestilles ved ordre.
Retningslinjer for produktanmeldelser

Matrox M9120 Plus LP PCIe x16

The Matrox M9120 Plus LP PCIe x16 low-profile, dual monitor graphics card renders pristine image quality on up to two displays, at resolutions up to 1920x1200 (digital) or 2048x1536 (analog) each. This card also supports up to four analog displays via an aftermarket quad-upgradeable cable, at resolutions of up to 1920x1200 each.


  • High-resolution dual monitor support Support resolutions up to 1920 x 1200 (Digital) and 2048 x 1536 (Analog) per output
  • Native PCI express x16 performance Maximum bandwidth to ensure best performance
  • Upgrade option to four monitors Support four VGA displays via cable (CAB-L60-4XAF); enables up to 1920 x 1200 per output
  • 512 MB of memory For enhanced performance in demanding multi-monitor applications
  • Low-profile form factor To fit in a wide variety of systems; includes bracket for full-height ATX form factor
  • Passive cooling and low power consumption Fanless design eliminates noise and increases product reliability
  • Stretched and independent desktop modes Expand your desktop across multiple monitors or set each monitor independent of each other
  • Edge Overlap New for Windows 7 Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.
  • M-Series multi-card support Add an additional M-Series card into the same system to drive up to 12 displays from two cards
  • Joined graphics card mode Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
  • Matrox Clone View a copy of one display on the other displays
  • Wide enterprise flexibility Unified driver package compatible with other Matrox products
  • Matrox PowerDesk software Easily configure and manage program windows on multiple monitors
  • Multiple operating system support Display drivers for Windows® 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit), and Linux

Hardware Included

  • Matrox M9120 Plus LP PCIe x16 graphics card with factory-installed low-profile bracket (ATX bracket in the box)
  • LFH60 to 2 x DVI-I dual-monitor adapter cable (1 ft)
  • Two DVI-I-to-HD15 connector adapters

Software Included

Producentens garanti (måneder) 36
Enhedstype Grafikkort - lavprofil
Bus Type PCI Express x16
Maksimum opløsning 2048 x 1536
Max Opløsnings Detaljer DVI: 1920 x 1200 / VGA: 2048 x 1536
Maks. antal understøttede monitorer 4
Interface 2 x DVI-I - 24+5 pin kombineret DVI (på vedlagte kabel)
2 x VGA - 15 pin HD D-Sub (HD-15) (med adapter)
API-understøttet OpenGL 2.0
Størrelse 512 MB
Teknologi DDR2 SDRAM
OS nødvendig Linux, Microsoft Windows Server 2003, Microsoft Windows Vista (32/64 bits), Microsoft Windows Embedded Standard 7, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Windows 8 (32/64 bit), Microsoft Windows Server 2008 R2 (32/64-bit), Microsoft Windows Server 2012 (32/64-bit)
Udstyr inkluderet ATX-beslag
Medfølgende ledninger 1 x DVI-kabel - 30.5 cm
2 x DVI-VGA adapter
Med software Matrox PowerDesk, Driver
Windows 8 kompatibel Dette produkt er blevet testet for at overholde alle tekniske krav for at være Windows 8 kompatibelt.
Overensstemmelsesstandarder EMC, RoHS, WEEE
Dybde 16.8 cm
Højde 6.9 cm
Service & Support Begrænset garanti - 3 år
