Matrox M9140 512MB DDR2

Varenummer: 360355 / Producentens varenr: M9140-E512LAF

More pictures from

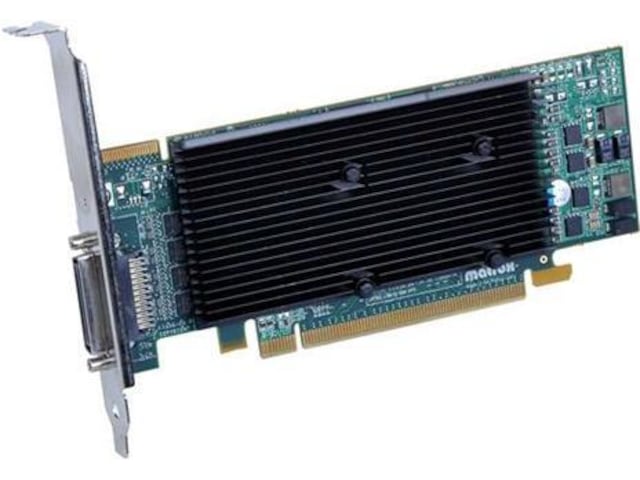

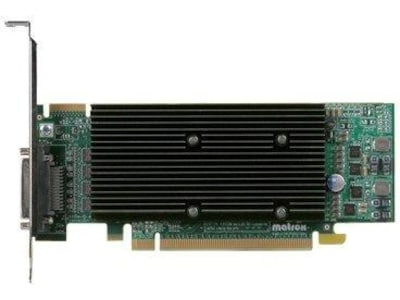

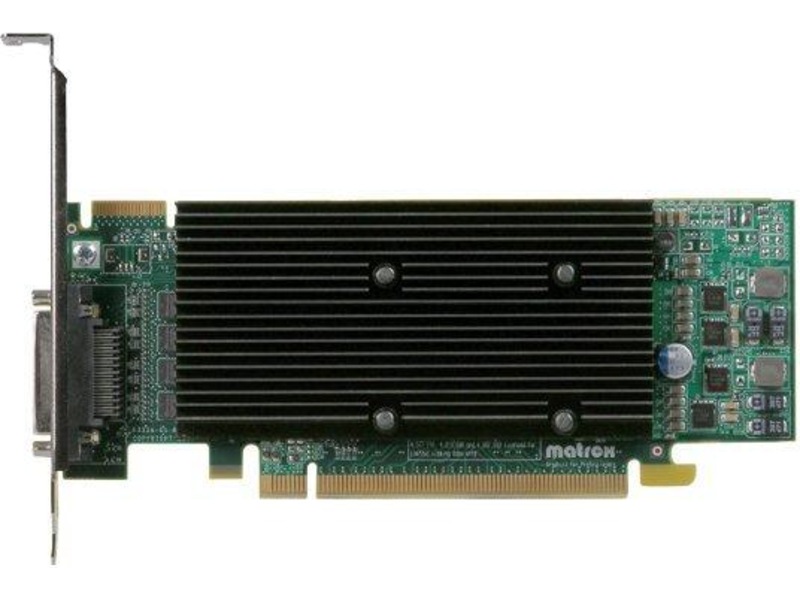

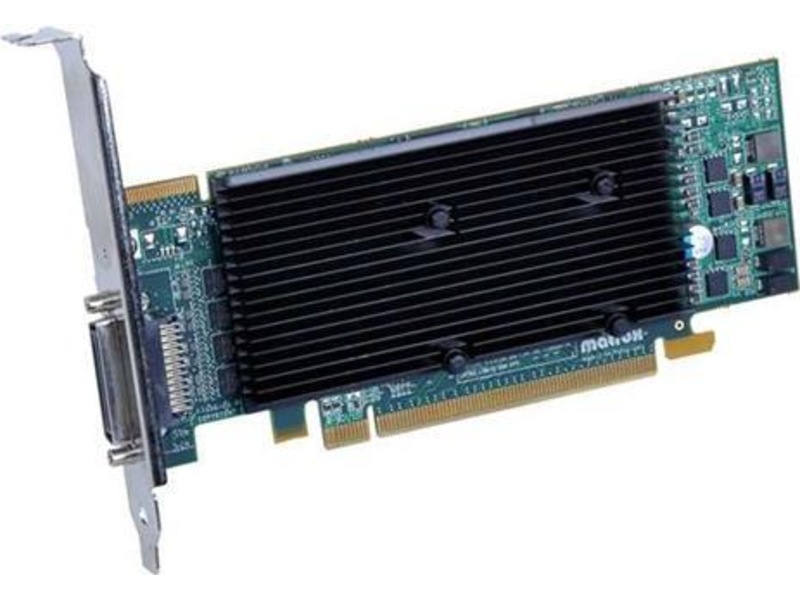

Matrox M9140 LP PCIe x16

The Matrox M9140 LP PCIe x16 quad graphics card renders pristine image quality on up to four monitors at resolutions up to 1920x1200 per output (digital or analog) for an exceptional multi-display user experience. With 512 MB of memory, the M9140 LP PCIe x16 offers advanced desktop management features such as independent or stretched desktop modes to drive business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support, and can be paired with another M9140 graphics card to support up to eight displays from a single system.


  • High-resolution four monitor support Support resolutions up to 1920 x 1200 per output (digital or analog)
  • Native PCI express x16 performance Maximum bandwidth to ensure best performance
  • 512MB of memory For enhanced performance in demanding multi-monitor applications
  • Low-profile form factor To fit in a wide variety of systems; includes bracket for full-height ATX form factor
  • Passive cooling and low power consumption Fanless design eliminates noise and increases product reliability
  • Stretched and independent desktop modes Expand your desktop across multiple monitors or set each monitor independent of each other
  • Edge Overlap New for Windows 7 Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.
  • M-Series multi-card support Add an additional M-Series card into the same system to drive up to 12 displays from two cards
  • Joined graphics card mode Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
  • Matrox Clone View a copy of one display on the other displays
  • Wide enterprise flexibility Unified driver package compatible with other Matrox products
  • Matrox PowerDesk software Easily configure and manage program windows on multiple monitors
  • Multiple operating system support Display drivers for Windows® 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit), and Linux

Hardware Included

  • Matrox M9140 LP PCIe x16 graphics card with factory-installed ATX bracket (low-profile bracket in the box)
  • KX-20 to 4 x DVI-I quad monitor adapter cable
  • Four DVI-I-to-HD15 connector adapters

Software Included

Producentens garanti (måneder) 36
Enhedstype Grafikkort - lavprofil
Bus Type PCI Express x16
Grafik engine Matrox M9140
Maksimum opløsning 1920 x 1200
Maks. antal understøttede monitorer 4
Interface 4 x DVI-I - 24+5 pin kombineret DVI (på vedlagte kabel)
4 x VGA - 15 pin HD D-Sub (HD-15) (med adapter)
API-understøttet OpenGL 2.0
EAN 790750235899
Størrelse 512 MB
Teknologi DDR2 SDRAM
OS nødvendig Linux, Microsoft Windows Server 2003, Microsoft Windows Vista (32/64 bits), Microsoft Windows Embedded Standard 7, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Windows 8 (32/64 bit), Microsoft Windows Server 2008 R2 (32/64-bit), Microsoft Windows Server 2012 (32/64-bit)
Yderligere krav CD-ROM
Udstyr inkluderet Simpelt beslag
Medfølgende ledninger 1 x DVI-kabel
4 x DVI-VGA adapter
Med software Drivers & Utilities, Matrox PowerDesk
Windows 8 kompatibel Dette produkt er blevet testet for at overholde alle tekniske krav for at være Windows 8 kompatibelt.
Overensstemmelsesstandarder EMC, RoHS, WEEE
Bredde 1.9 cm
Dybde 16.8 cm
Højde 6.8 cm
Service & Support Begrænset garanti - 3 år
