Matrox M9148 1GB, 4x mini-DisplayPort

PCI-Express 16x, Low-profile, Passive cooling, 2560x1600

Varenummer: 484499 / Producentens varenr: M9148-E1024LAF

More pictures from Matrox M9148 1GB, 4x mini-DisplayPort

Fri fragt
Bestillingsvare, bestilles ved ordre.

Matrox M9148 LP PCIe x16

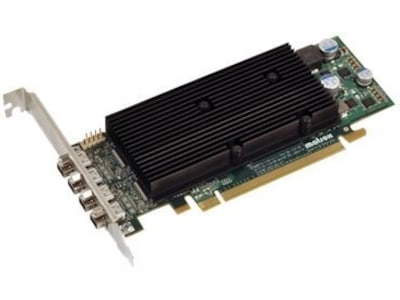

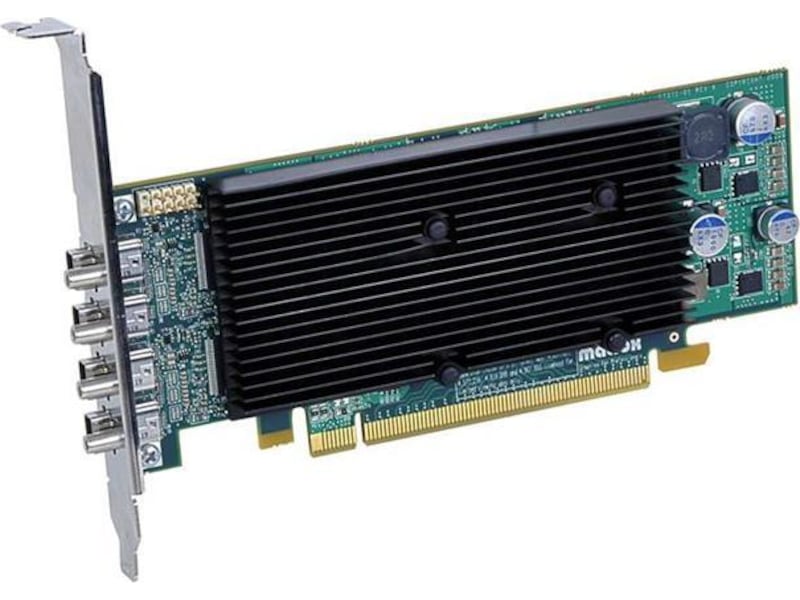

The Matrox M9148 LP PCIe x16 quad graphics card renders pristine image quality on up to four DisplayPort™ monitors at resolutions up to 2560 x 1600 per output for an exceptional multi-monitor user experience. With 1 GB of memory and advanced desktop management features, the M9148 LP PCIe x16 card supports both independent or stretched desktop modes and drives business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support, and can be paired with another M9148 graphics card to support up to eight DisplayPort monitors from a single system.


  • High-resolution four DisplayPort monitor support Support resolutions up to 2560 x 1600 per output
  • Native PCI express x16 performance Maximum bandwidth to ensure best performance
  • 1GB of memory For enhanced performance in demanding multi-monitor applications
  • Low-profile form factor To fit in a wide variety of systems; includes bracket for full-height ATX form factor
  • Passive cooling and low power consumption Fanless design eliminates noise and increases product reliability
  • Stretched and independent desktop modes Expand your desktop across multiple monitors or set each monitor independent of each other
  • Edge Overlap New for Windows 7 Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.
  • M-Series multi-card support Add an additional M-Series card into the same system to drive up to 12 displays from two cards
  • Joined graphics card mode Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
  • Matrox Clone View a copy of one display on the other displays
  • Wide enterprise flexibility Unified driver package compatible with other Matrox products
  • Matrox PowerDesk software Easily configure and manage program windows on multiple monitors
  • Multiple operating system support Display drivers for Windows® 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit), and Linux

Hardware Included

  • Matrox M9148 LP PCIe x16 graphics card with factory-installed ATX bracket (low-profile bracket in the box)
  • Four miniDP to DP adapters
  • Four DP to DVI connector adapters

Software Included

Producentens garanti (måneder) 36
Enhedstype Grafikkort - lavprofil
Bus Type PCI Express x16
Grafik engine Matrox M9148
Maksimum opløsning 2560 x 1600
Max Opløsnings Detaljer DVI: 1920 x 1200 / DisplayPort: 2560 x 1600
Maks. antal understøttede monitorer 4
Interfacer 4 x Mini DisplayPort
4 x DisplayPort - med adapter
4 x DVI-D (dobbelt link) - med adapter
API-understøttet OpenGL 2.0
Egenskaber Køleribbe uden blæser
EAN 790750240053
Størrelse 1 GB
OS nødvendig Linux, Microsoft Windows Server 2003, Microsoft Windows Vista (32/64 bits), Microsoft Windows Embedded Standard 7, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Windows 8 (32/64 bit), Microsoft Windows Server 2008 R2 (32/64-bit), Microsoft Windows Server 2012 (32/64-bit)
Udstyr inkluderet Simpelt beslag
Med software Matrox PowerDesk
Windows 8 kompatibel Dette produkt er blevet testet for at overholde alle tekniske krav for at være Windows 8 kompatibelt.
Overensstemmelsesstandarder RoHS, WEEE
Bredde 16.8 cm
Højde 6.9 cm
Service & Support Begrænset garanti - 3 år
