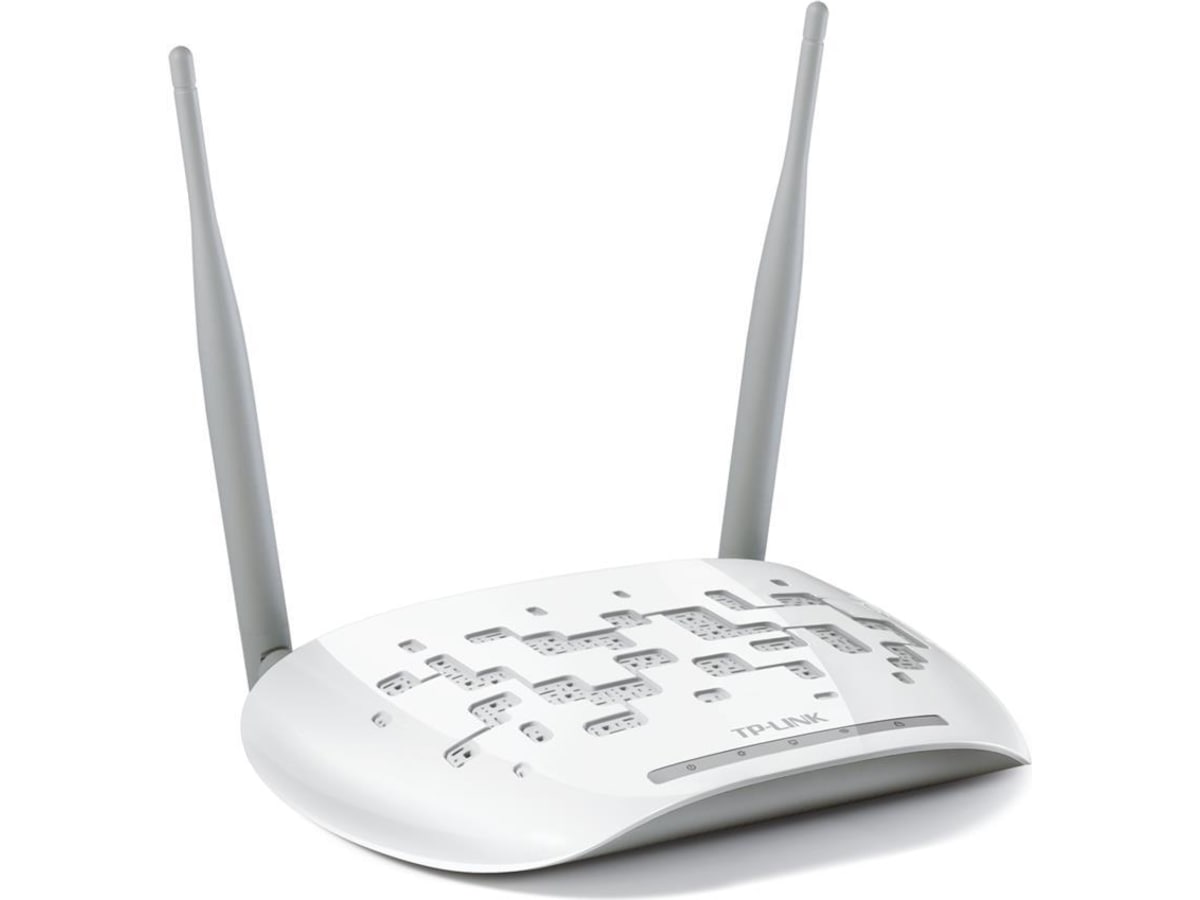

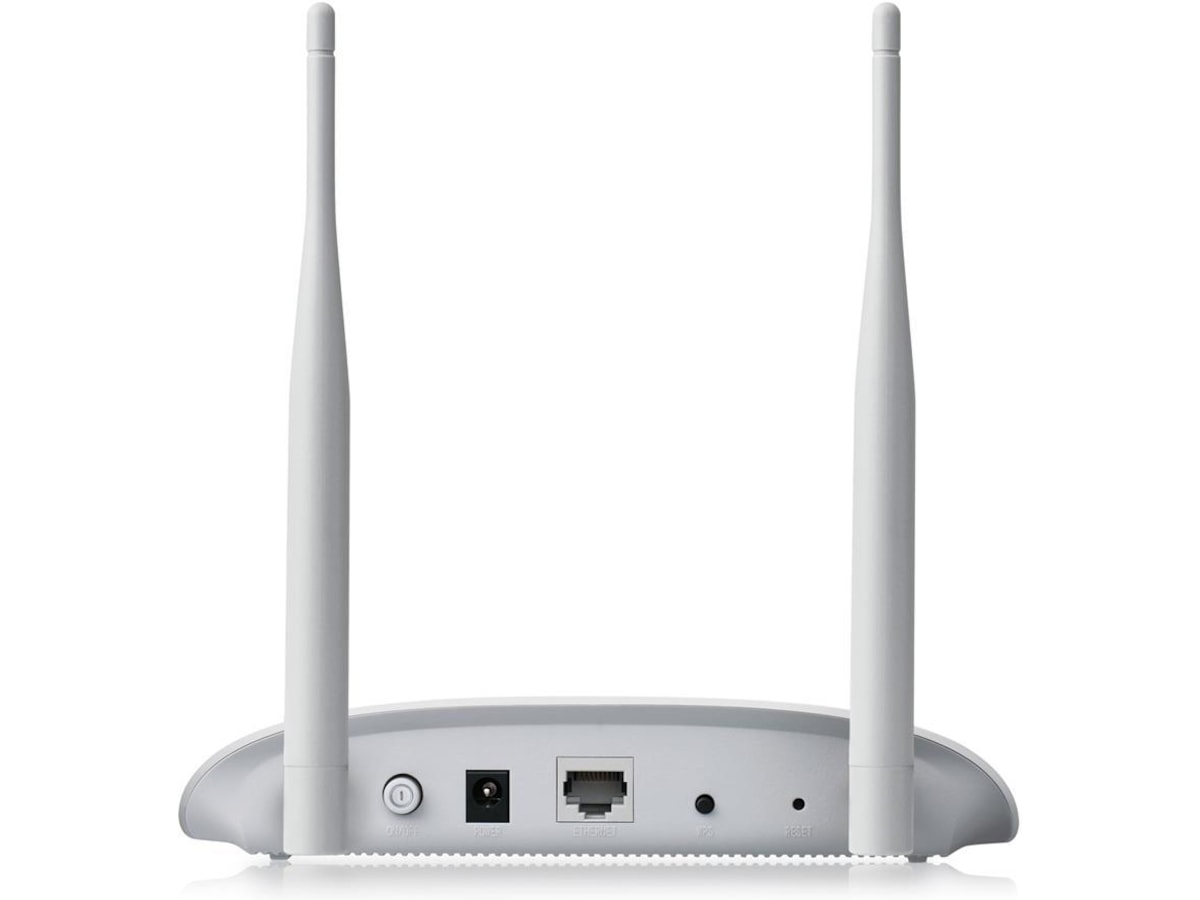

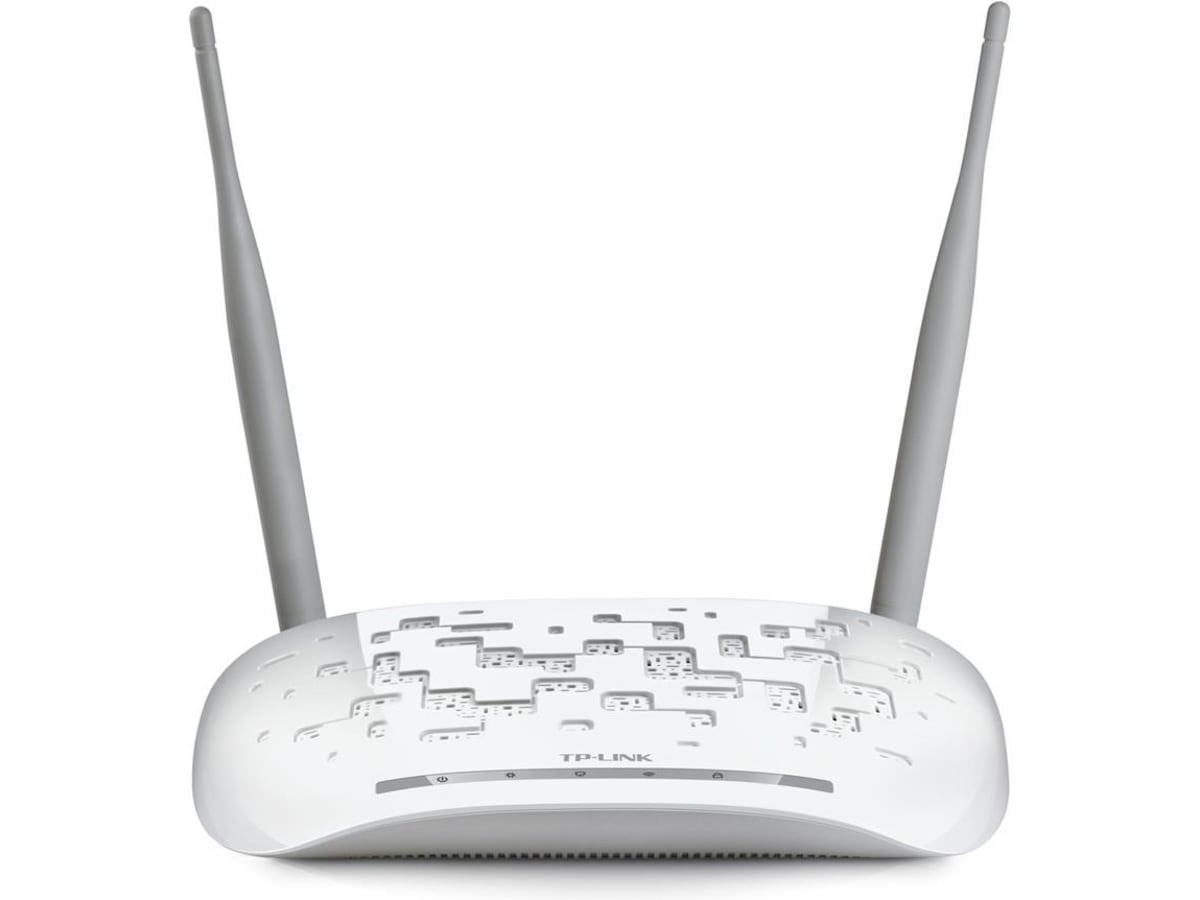

TP-LINK TL-WA801ND Accesspoint

Varenummer: 617284 / Producentens varenr: TL-WA801N

More pictures from

300Mbps Wireless N Access Point TL-WA801ND


  • 300Mbps wireless transmission rate, brings smooth wireless N experience
  • Supports multiple operating modes: Access Point, Client, Universal/ WDS Repeater, Wireless Bridge
  • Easily setup a WPA encrypted secure connection at a push of the QSS button
  • Up to 30 meters Power over Ethernet* capability for flexible deployment

What This Product Does
The TP-LINK Wireless N Access Point TL-WA801ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network. The APs support a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.

Wireless N - Speed & Range
Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through three antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes - Easy to Build WLAN
Supports AP Client, Bridge, Repeater and AP operation modes to enable various wireless applications to give users a more dynamic and comprehensive experience when using their AP. Multiple operating mode also helps you easily to build wireless network for hard-to-wire locations or eliminating wireless dead zone.

QSS Button - Quick Setup Security
Compatible with WI-FI Protected Setup™ (WPS), TL-WR841ND features Quick Security Setup that allows users to almost instantly setup their security simply by pressing the "QSS" button automatically establishing a WPA2 secure connection, which is more security compared with WEP encryptions. Not only is this faster than normal security setups but more convenient in that you don't need to remember a password!

PoE Supported- More Flexible Deployment
The TL-WA801ND is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

WPA / WPA2 Encryptions - Advanced Security
As for the security of WI-FI connection, WEP encryption has been no longer the strongest and safest guards for outside threats. TL-WR801ND provides WPA/WPA2 encryptions (Both Personal and Enterprises) that are created by the WI-FI Alliance industry group, promoting interpretabilities and security for WLAN.

Producentens garanti (måneder) 36
Enhedstype Trådløs forbindelse
Bredde 17.4 cm
Dybde 12 cm
Højde 2.9 cm
Model Ekstern
Forbindelsesteknologi Trådløs
Kabel (kabler) / understøttet af medietype Ethernet 100Base-TX kabel
Dataoverførselshastighed 300 Mbps
Liniekodningsformat DBPSK, DQPSK, CCK, 64 QAM, 16 QAM
Dataforbindelsesprotokol IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Spread-spectrum metode OFDM, DSSS
Frekvensbånd 2.4 GHz
Statusindikatorer Strøm, system, link/aktivitet
Egenskaber Wireless Distribution System (WDS) support, MIMO-teknologi, understøttelse af Wi-Fi-multimedie (WMM), Multiple SSID support, trådløs bro tilstand, passiv PoE-understøttet
Krypterings algoritme WPA, WPA2
Autentificeringsmetode Radio Service Set ID (SSID)
Overensstemmelsesstandarder IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Antenne Aftagelig eksternt
Antal antenner 2
Direktivitet Omni-directional
Forstærkning 4 dBi
Ekspansion / Konnektivitet
Interface 1 x 100Base-TX - RJ-45
Udstyr inkluderet PoE injektor
Medfølgende ledninger 1 x netværkskabel
Power Over Ethernet (PoE) understøttet PoE
Strømenhed Ekstern strømforsyning
Miljømæssige parametre
Min. driftstemperatur 0 °C
Maks. driftstemperatur 40 °C
Fugtighedsgrad ved brug 10 - 90%
