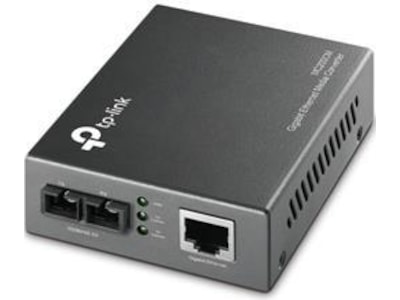

TP-LINK MC200CM Gigabit Media converter
Forlenger fiber lengden med opp til 0.5km
Of
TP-LINK
Varenummer:
623112
/ Producentens varenr:
MC200CM
Produktoplysninger
Gigabit Ethernet Media Converter MC200CM
Highlights:
- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 0.5km
What This Product Does
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
Tekniske detaljer
| Producentens garanti (måneder) | 36 |
|---|---|
| Enhedstype | Fibermedieomformer |
| Model | Ekstern |
| Forbindelsesteknologi | Kabling |
|---|---|
| Kabeltype | 1000Base-SX, 1000Base-T |
| Dataforbindelsesprotokol | GigE |
| Dataoverførselshastighed | 1 Gbps |
| Optisk bølgelængde | 850 nm |
| Maks. overføringsafstand | 550 m |
| Statusindikatorer | Strøm, modtag, link/aktivitet |
| Egenskaber | Datatransport, auto-uplink (auto MDI/MDI-X), fuld dupleksmodus |
| Overensstemmelsesstandarder | IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Interface | 1 x Ethernet 1000Base-T - RJ-45 hun 1 x Ethernet 1000Base-SX - SC multi-mode hun x 2 |
|---|
| Overensstemmelsesstandarder | FCC |
|---|
| Strømenhed | Ekstern strømforsyning |
|---|
| Bredde | 9.5 cm |
|---|---|
| Dybde | 7.3 cm |
| Højde | 2.7 cm |
| Min. driftstemperatur | 0 °C |
|---|---|
| Maks. driftstemperatur | 40 °C |
| Fugtighedsgrad ved brug | 10 - 90% |
| Designet for | P/N: TL-MC1400 |
|---|
