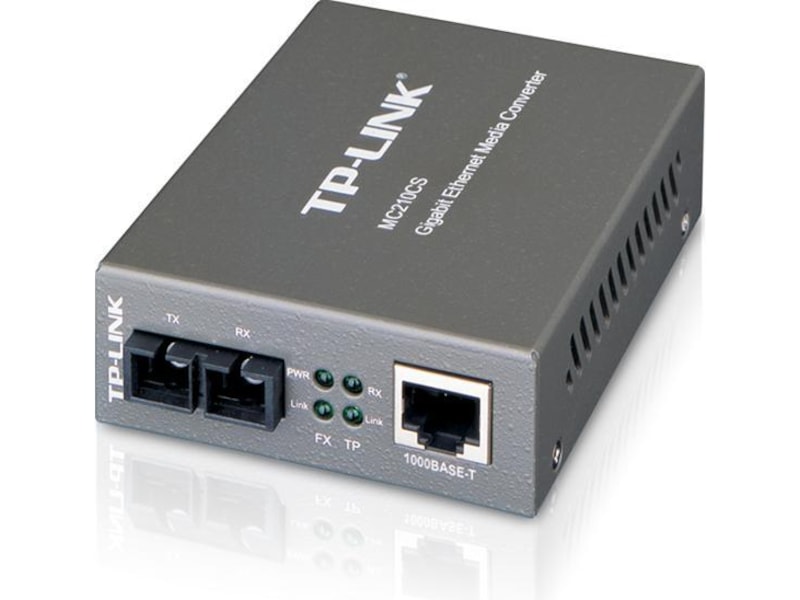

TP-LINK MC210CS Gigabit Media converter

Single-mode SC fiber Converter, Full-duplex, opp til 15km

Varenummer: 638625 / Producentens varenr: MC210CS

More pictures from TP-LINK MC210CS Gigabit Media converter

495,-
+ fragt fra 49,-
60 dages åbent køb
Fri retur
Fri fragt over 1000,-
25 stk. på lager (leveringstid 2-3 arbejdsdage)
Average rating (1 reviews)
Retningslinjer for produktanmeldelser

What This Product Does

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.


Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.

  • Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
  • Supports auto MDI/MDI-X for TX port
  • Provides switch configuration of Force /Auto transfer mode for FX port.
  • Extends fiber distance up to 15km
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply



Generelt
Producentens garanti (måneder) 36
Enhedstype Fibermedieomformer
Model Ekstern
Netværk
Forbindelsesteknologi Kabling
Kabeltype 1000Base-FX, 1000Base-T
Dataforbindelsesprotokol GigE
Dataoverførselshastighed 1 Gbps
Optisk bølgelængde 1310 nm
Maks. overføringsafstand 15 km
Statusindikatorer Strøm, modtag, link/aktivitet
Egenskaber Datatransport, auto-uplink (auto MDI/MDI-X), fuld dupleksmodus
Overensstemmelsesstandarder IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Ekspansion / Konnektivitet
Interface 1 x Ethernet 1000Base-T - RJ-45 hun
1 x Ethernet 1000Base-FX - SC single-mode hun x 2
Effekt
Strømenhed Ekstern strømforsyning
Mål og vægt
Bredde 9.5 cm
Dybde 7.3 cm
Højde 2.7 cm
Miljømæssige parametre
Min. driftstemperatur 0 °C
Maks. driftstemperatur 40 °C
Fugtighedsgrad ved brug 10 - 90%
Oplysninger om kompatibilitet
Designet for P/N: TL-MC1400
