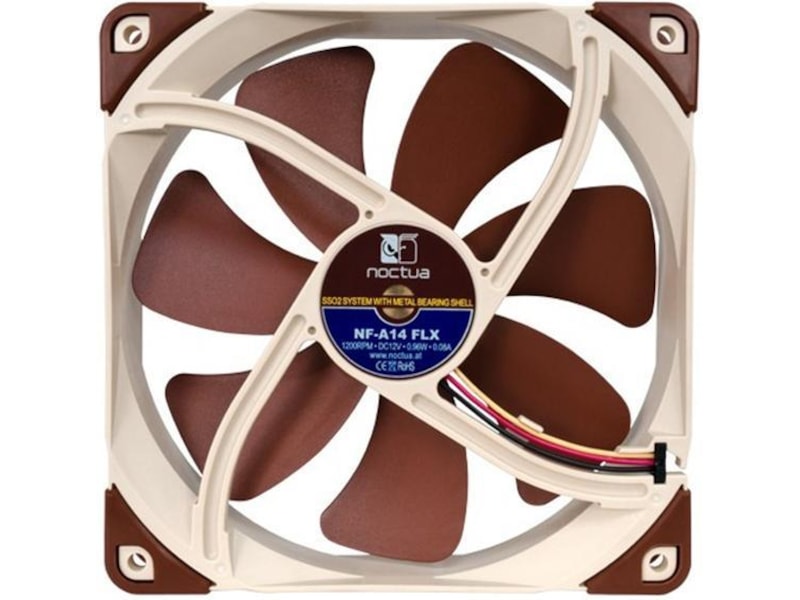

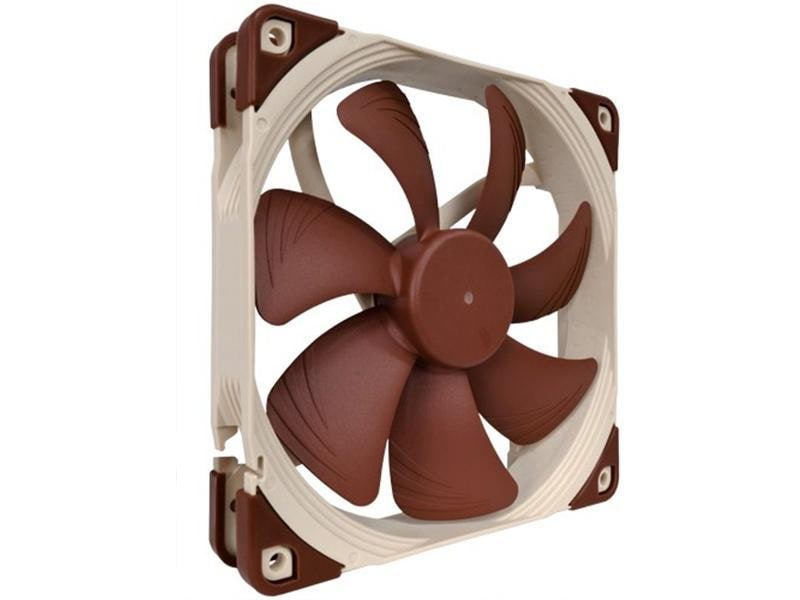

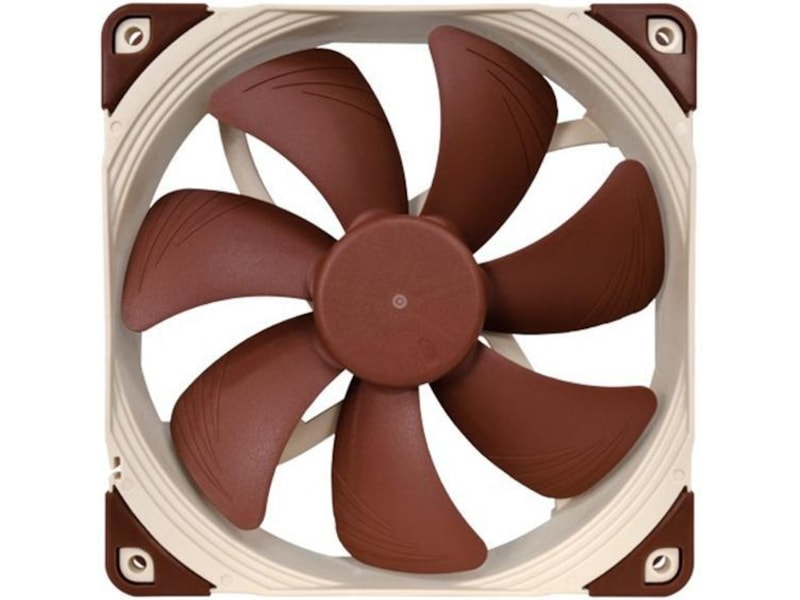

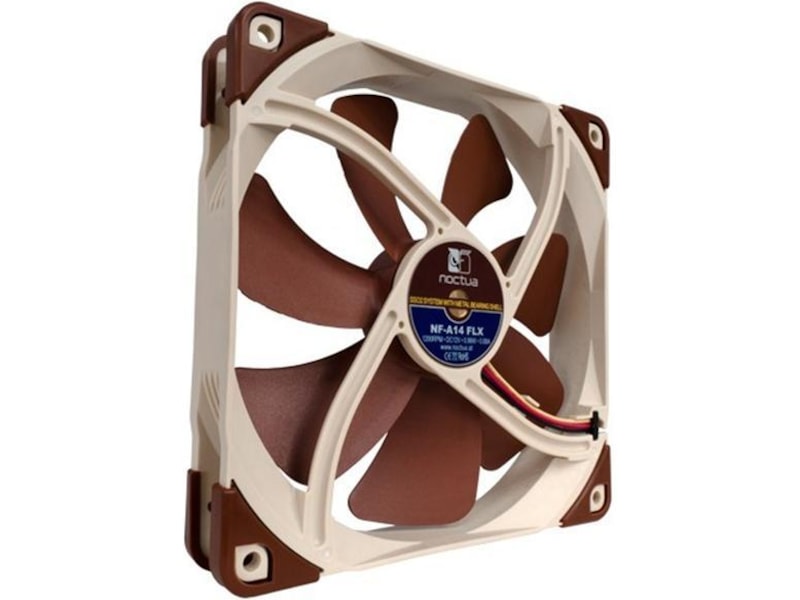

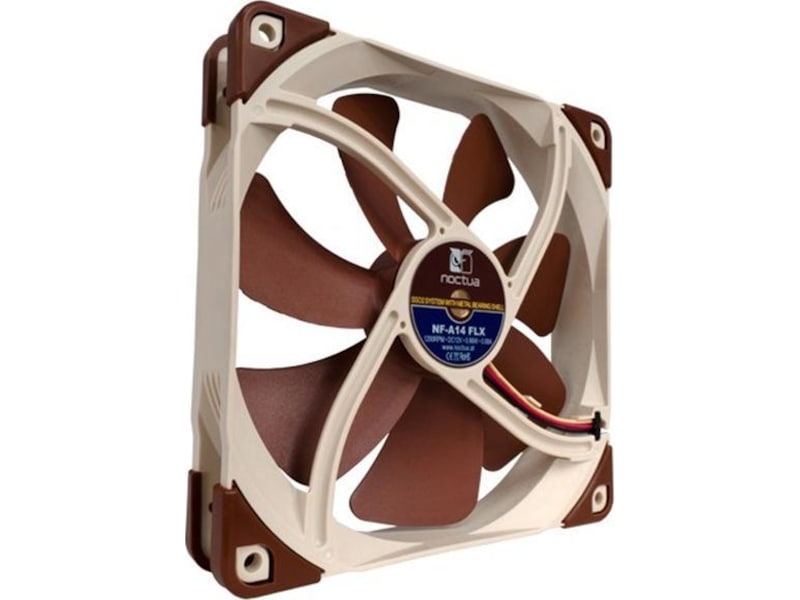

Noctua NF-A14 FLX 140mm Blæser

140 x 140 x 25 mm, 900~1200 RPM, 88.7~115.5 m³/h, 13.8~19.2 dBA, 3-Pin

Varenummer: 770801 / Producentens varenr: NF-A14-FLX

More pictures from Noctua NF-A14 FLX 140mm Blæser

29 stk på lager. (1-5 dages leveringstid)

Noctua NF-A14 FLX 140mm. The NF-A14 is a premium quality quiet 140mm fan with a square frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard. Its square shape and 140mm mounting holes (124.5mm spacing) make it ideal for use on water- cooling radiators or as an upgrade for 140mm case fans.

Succeeding the award-winning NF-P14.
Noctua’s NF-P14 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 140mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A14 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.
Square 140mm frame.
The NF-A14’s square 140mm frame with 140mm mounting holes (124.5mm spacing) makes it a premium grade replacement for common 140mm case fans and perfect for use on 140mm water cooling radiators, where its square shape will ensure full coverage and best pressure performance.
Flow Acceleration Channels.
The NF-A14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO Frame.
Noctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency.
Stepped Inlet Design.
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments
Inner Surface Microstructures.
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads.
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
SSO2 Bearing.
The NF-A14 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell.
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-A14 sports a CNC milled bearing shell made entirely from brass.
Smooth Commutation Drive 2.
The latest version of Noctua’s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A14 remarkably quiet even at very close distance.
3 speed settings for full flexibility.
Providing 1200, 1050 and 900 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adaptors, the NF-A14 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.
Extensive cabling options.
The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and the supplied 3:4 pin adaptor allows to connect the fan directly to the power supply.
Ultra-Low Power Consumption.
Despite of its further improved performance, the NF-A14 FLX consumes only 0.96W of power, which amounts to a reduction of about 20% as compared to its predecessor. This doesn’t only make it eco-friendly but also helps to cut down the electricity bill!
6 years manufacturer’s warranty.
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A14 features an MTBF of more than 150.000 hours rating and comes with a full 6 years manufacturer’s warranty.

Model NF-A14 FLX
Produktlinje Noctua
Produkttype Indsats med blæser
Producentens garanti (måneder) 60
Tilbehørskategori Tilbehør til desktopcomputer og server, Køling og blæser

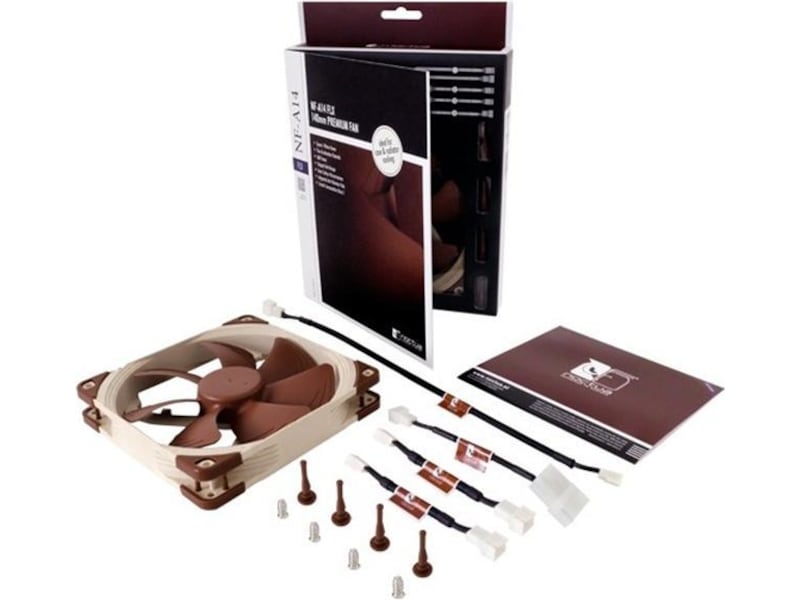

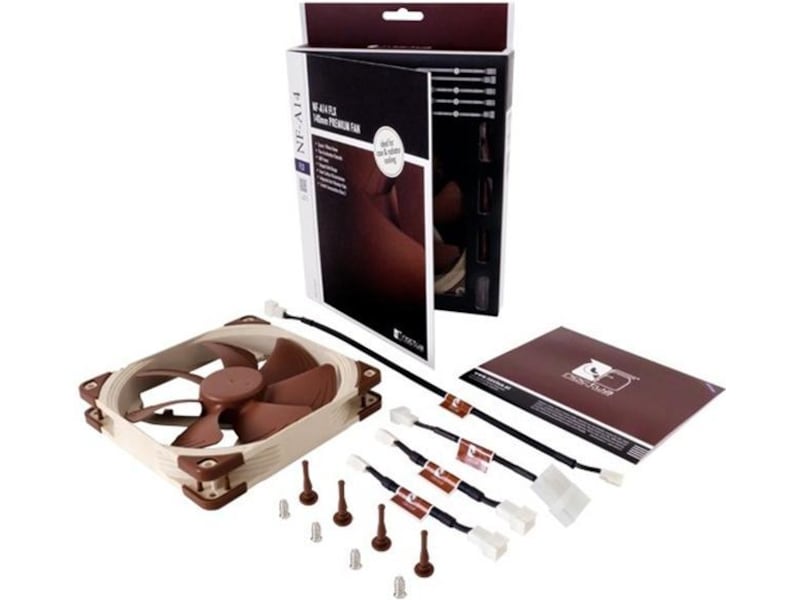

Pakkeindhold 3-pin stik til 4-pin Molex adapter, 4 x skruer, Low-Noise Adaptor (L.N.A.), 4 vibrerings isolatorer, Forlængerkabel (30 cm), Ultra-Low-Noise Adaptor (U.L.N.A.)
EAN 4716123314813
Monteringspakke Inkluderet
MTBF (forventet tid mellem fejl) 150,000 time(r)
Varmeafleder & blæser
Omdrejningshastighed 900/1050/1200 rpm
Støjniveau 13.8 - 19.2 dBA
Luftstrøm (metrisk) 88.7-116 m³/h
Blæser-højde 25 mm
Blæser diameter 140 mm
Blæser med kugleleje SSO2 leje
Rated Voltage 12 V
Lufttryk 0.89-1.51 mm
Luftstrøm 52,2-68 cfm
Strømforbrug 0.96 W
Rated Strøm 0.08 A
Egenskaber Advanced Acoustic Optimisation (AAO), Flow-accelerationskanaler
Stik 4 pin Molex tilslutter, 3-pin stik
Service & Support
Type 6 års garanti
Detaljer om service & support
Service & Support Begrænset garanti: - 6 år
