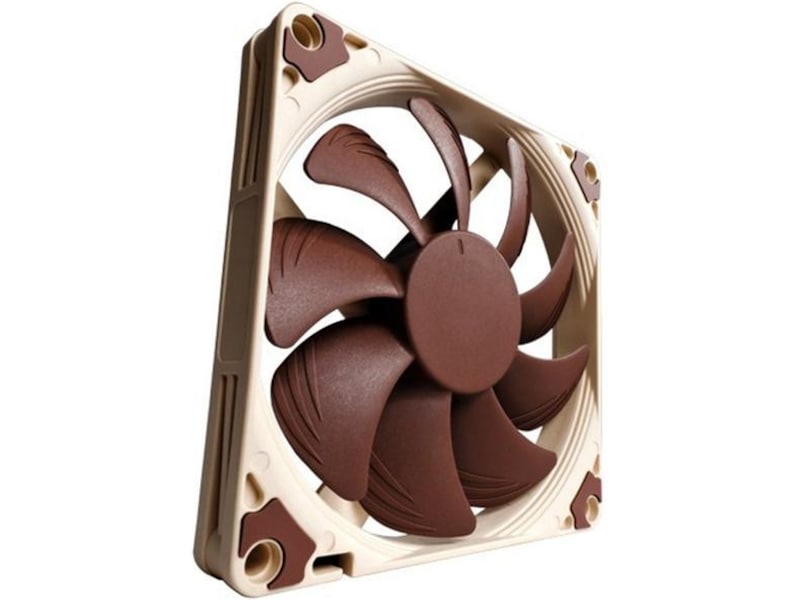

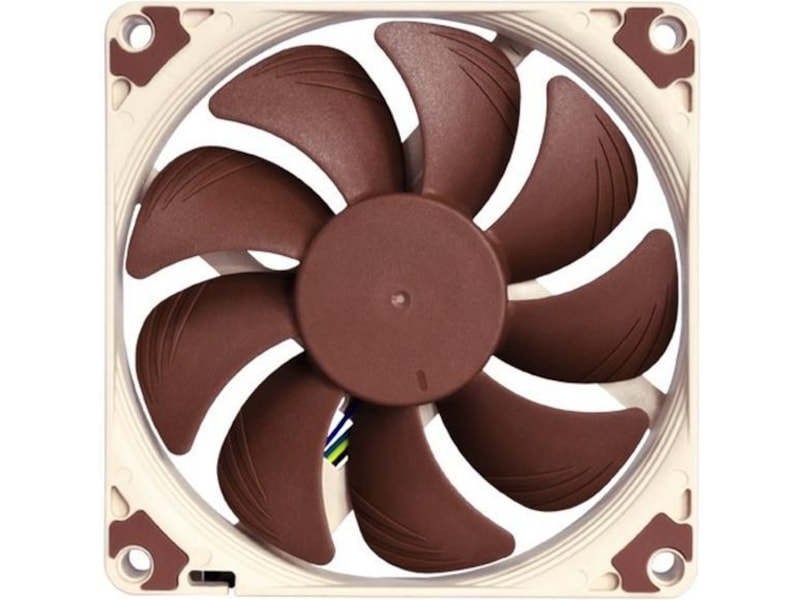

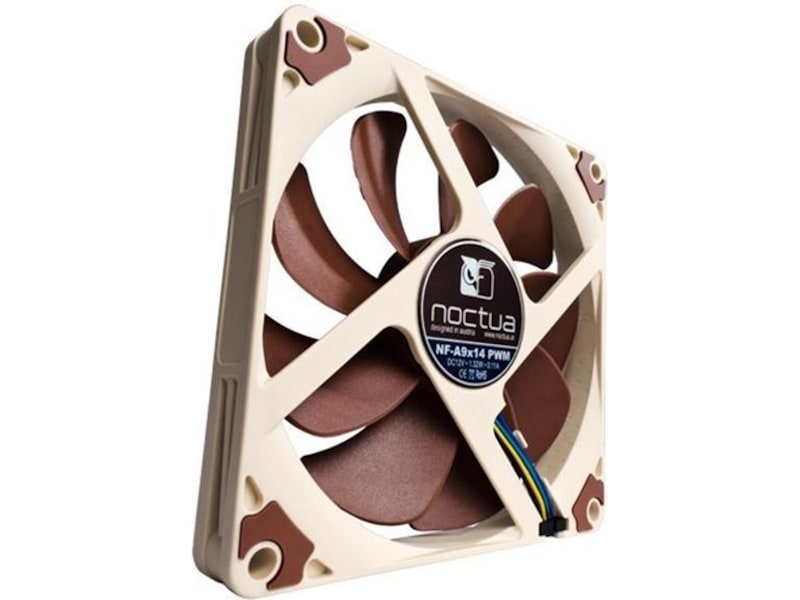

Noctua NF-A9x14 PWM 92mm Blæser

92 x 92 x 14 mm, 1700~2200 RPM, 38.1~50.5 m³/h, 13.5~19.2 dBA, 4-Pin PWM

Varenummer: 770805 / Producentens varenr: NF-A9X14 PWM

More pictures from Noctua NF-A9x14 PWM 92mm Blæser

+ fragt fra 59,-
25 stk på lager. (1-5 dages leveringstid)

Noctua NF-A9x14 PWM 92mm. Featuring Noctua’s AAO frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9x14 is a highly optimised, premium quality quiet fan in 92x14mm size. Due to its thickness of only 14mm, the NF-A9x14 is a perfect match for low profile CPU coolers and all other applications that require slimmer fans.

14mm Low Profile Design.
Measuring only 14mm in thickness, the NF-A9x14 is much slimmer than standard 92x25mm fans. This makes it ideal for all applications where standard fans would take up too much space, such as low profile CPU coolers in HTPC builds or server environments
Flow Acceleration Channels.
The NF-A9x14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO Frame.
Noctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency.
Stepped Inlet Design.
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.
Inner Surface Microstructures.
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads.
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.
SSO2 Bearing.
The NF-A9x14 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Custom designed PWM IC with SCD.
Supporting fully automatic PWM speed control, the NF-A9x14 uses Noctua’s novel, custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
Low-Noise Adaptor.
The NF-A9x14 is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 2200 to 1700rpm. The L.N.A can be used either to run the fan at a fixed speed of 1200rpm or to cap the maximum speed when using automatic PWM control.
Extensive Cabling Options.
The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows to connect a second NF-A9x14 fan to the same PWM fan header for automatic control.
6 years manufacturer’s warranty.
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A9x14 features an MTBF rating of more than 150.000 hours and comes with a full 6 years manufacturer’s warranty.

Producentens garanti (måneder) 60
Produkttype Indsats med blæser

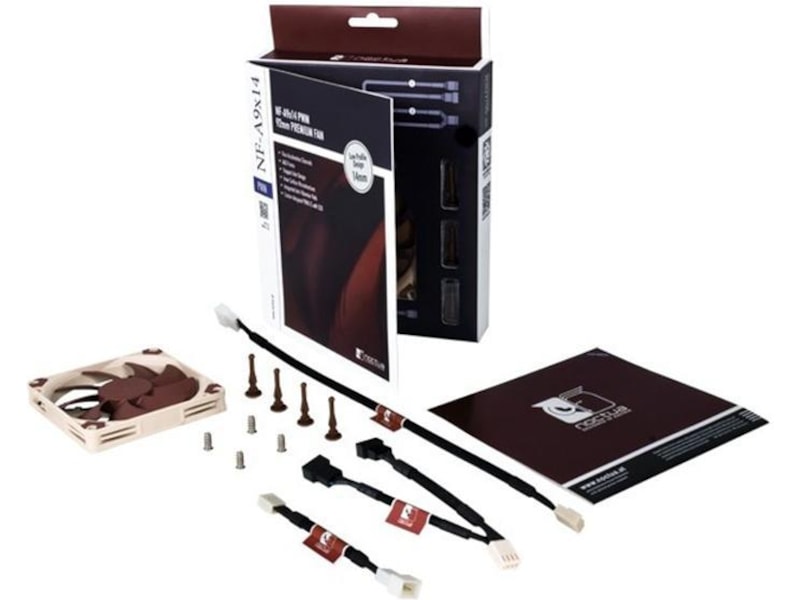

Pakke Indhold Low-Noise Adaptor (L.N.A.), Y-Split kabel, 4 vibrerings isolatorer, 4 x skruer
EAN 4716123314776
Varmeafleder & blæser
Blæser diameter 92 mm
Blæser-højde 14 mm
Blæser med kugleleje SSO2 leje
Omdrejningshastighed 300-2200 rpm
Luftstrøm 50,5 cfm
Lufttryk 1.64 mm
Støjniveau 19.9 dBA
Stik 4-pins blæser-stikforbindelse
Rated Voltage 12 V
Rated Strøm 0.11 A
MTBF (forventet tid mellem fejl) 150,000 time(r)
Service & Support Begrænset garanti: - 6 år
