Varenummer: 779015 / Producentens varenr: NH-U14S

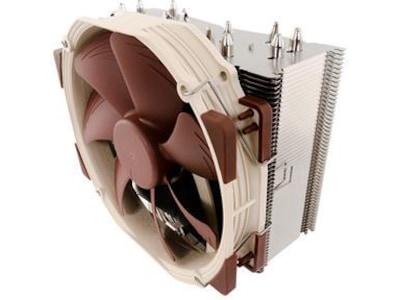

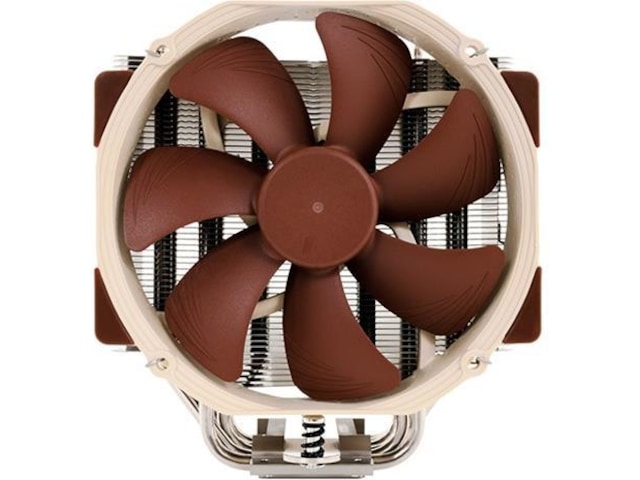

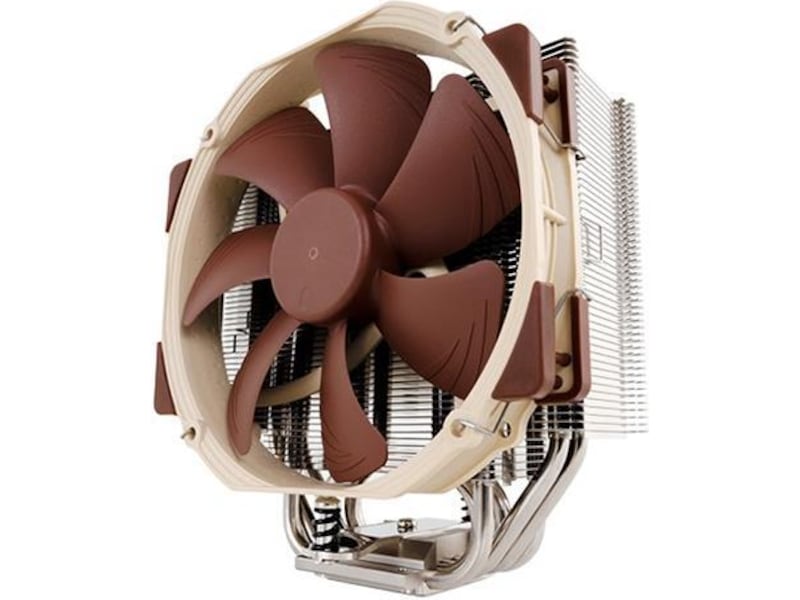

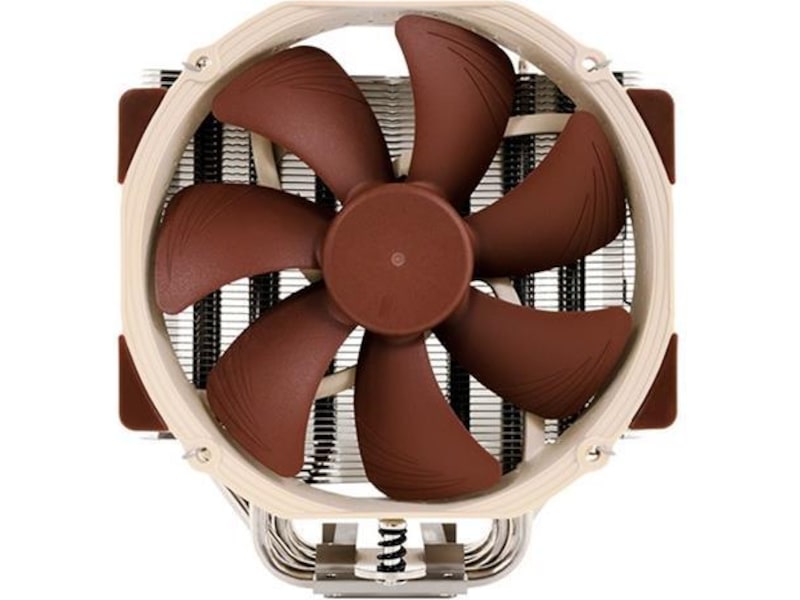

Noctua NH-U14S CPU Køler

LGA1851/1700/1200/115x, AM4/AM5, 300~1500 RPM, 140,2 m³/h, 19 ~22 dBA

More pictures from Noctua NH-U14S CPU Køler

542,-
12 stk på lager. (2-6 hverdage leveringstid)


Noctua NH-U14S CPU Cooler. The NH-U14S is the 14cm top model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. While the large, six heatpipe design and the NF-A15 140mm fan with PWM support for fully automatic speed control allow the cooler to best the renowned quiet cooling performance of all other U-series coolers, its 52mm slim shape still guarantees full compatibility with tall RAM modules on LGA2011.


Award-winning NH-U series.
The NH-U14S is the first 140mm model in Noctua’s award-winning NH-U series. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.
Full RAM compatibility on LGA2011.
With its 52mm slim design tailor-made for LGA2011, the NH-U14S will not overhang the RAM slots on this platform, thus guaranteeing full compatibility with tall memory modules. On some LGA115x and AMD motherboards, the front fan may overhang the first RAM slot, so standard height RAM (up to 32mm) should be chosen when using the first slot.
Reasonable size for better overall compatibility.
Standing 165mm tall, the NH-U14S is short enough to fit most modern high-end cases. Measuring 150mm wide (including fan and fan clips), the NH-U14S provides better compatibility with SLI and CrossFire setups as compared to tower coolers that are wider than 150mm or use fans wider than 150mm.
NF-A15 140mm PWM Fan.
The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua’s AAO standard. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14.
PWM support and Low-Noise Adaptor.
The NF-A15 140mm fan supplied with the NH-U14S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.
Anti-vibration pads and fan-clips for second NF-A15 (optional).
For users who want to achieve even better performance by adding a second, optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode
SecuFirm2™ mounting system.
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1155, LGA1156), LGA2011 and AMD (AM3+, AM2+, FM1, FM2), the SecuFirm2™ mounting included with the NH-U14S guarantees perfect contact pressure and maximum convenience on all current sockets.
Compatibility with past and future sockets.
Complying with the open SecuFirm™ standard, the NH-U14S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.
NT-H1 thermal compound.
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
6 years warranty.
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15 features an MTBF rating of more than 150.000 hours and the entire NH-U14S package comes with a full 6 years manufacturer’s warranty.



Generelt
Model NH-U14S
Produktlinje Noctua
Produkttype Processor-køler
Producentens garanti (måneder) 60
Tilbehørskategori Køling og blæser, Tilbehør til desktopcomputer og server
Pakkeindhold Termisk paste, Low-Noise Adaptor (L.N.A.), SecuFirm2 Mounting Kit
EAN 4716123314950
Diverse
MTBF (forventet tid mellem fejl) 150,000 time(r)
Varmeafleder & blæser
Blæser diameter 140 mm
Egenskaber Puls-bredde modulation (PWM) support
Materiale til varmeafleder Aluminium og kobber
Luftstrøm 68 cfm
Omdrejningshastighed 300-1500 rpm
Luftstrøm (metrisk) 116 m³/h
Blæser-højde 25 mm
Stik 4-pins blæser-stikforbindelse
Rated Voltage 12 V
Støjniveau 24.6 dBA
Blæser med kugleleje SSO2 leje
Heatsink-dimensioner 165 mm x 150 mm x 52 mm
Kompatibel med LGA1151 Socket, LGA1150 Socket, Socket AM4, Socket AM3+, LGA1155 Socket, LGA2011 Socket, Socket AM2, Socket FM1, LGA1156 Socket, LGA1200 Socket, Socket FM2, Socket AM3, Socket AM2+
Mål og vægt
Højde 16.5 cm
Vægt 935 g
Bredde 15 cm
Dybde 7.8 cm
Average rating (18 reviews)
Retningslinjer for produktanmeldelser

standard for grei/gode ting

By Frederik T 10-03-2024

passer akkurat i pc kasse og RAM, hvis du har veldig nær eller tykk RAM så kan de bli vaskligere eller imulig å installere. men standard ATX og medium/small kasse så kan det funke akkurat. installering av selve "mounting" for denne kan være litt vanskling også, men kanskje fordi det er min første gang og lite rom, teip kan kanskje helpe for noen. også det med å vite hvor mye press det skal være mellom fan og CPU. lyd virker stlle og tenker dette kan funke bra, kanskje ikke beste handling av ledning. har ikke brukt dette produktet lenge nok for 5 stjerner, men ellers solid produkt og merke. Read more

Synes du denne anmeldelse er nyttig?

Solid og god kjøler

By Odd Henriksen 02-12-2023

Denne kjøleren har gode nok kjøleegenskaper til å kjøle ned selv ganske krevende prosessorer. Utmerket kvalitet, lite lyd. Litt "plundrete" installasjon, synes jeg. Jeg slet med at mens jeg skrudde den fast, "hoppet den av" på andre siden, og med litt trang tilkomst i kabinettet jeg jobbet med, var det ganske frustrerende. Men - det gikk selvsagt til slutt, og med en Noctua-kjøler er det alltid verdt strevet. Read more

Synes du denne anmeldelse er nyttig?

Nydelig produkt

By Fred 07-10-2022

Har hatt denne CPU kjøleren i underkant av 10år nå, og den pumper og går forstt helt fint selv etter mange timer gaming og diverse oppgaver. Kjøpte altså denne orginalt til min FX-8350, og sener oppgraderte til en Ryzen 1700x fikk da gratis nytt mounting bracket som passet til AM4 backplaten direkte fra Noctua. Har i nyere tid oppgradert til en Ryzen 5800x3D og holder denne på underkant av 70celsius ved heavy load. Så her er det mye for pengene. Read more

Synes du denne anmeldelse er nyttig?
