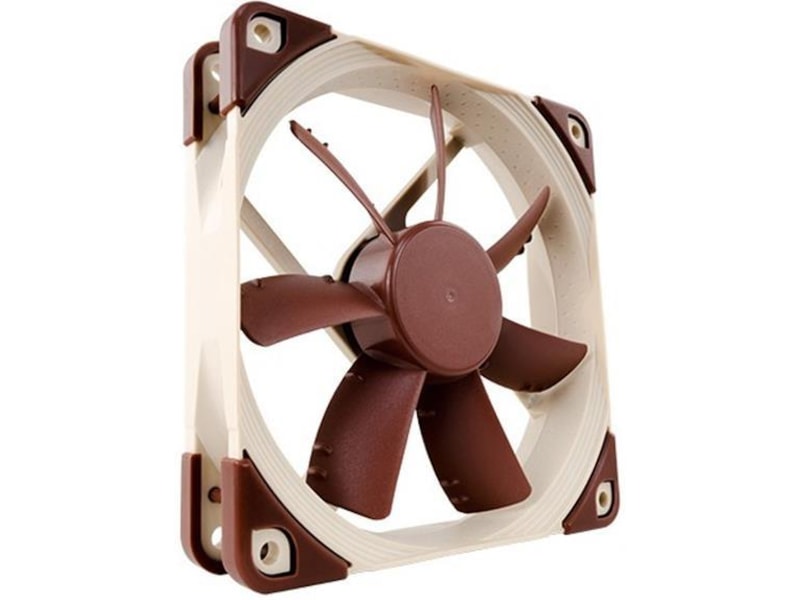

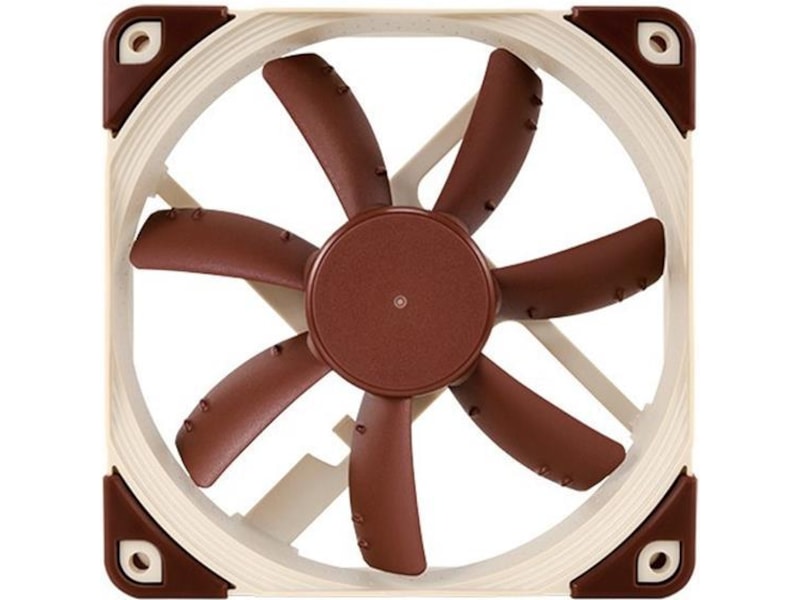

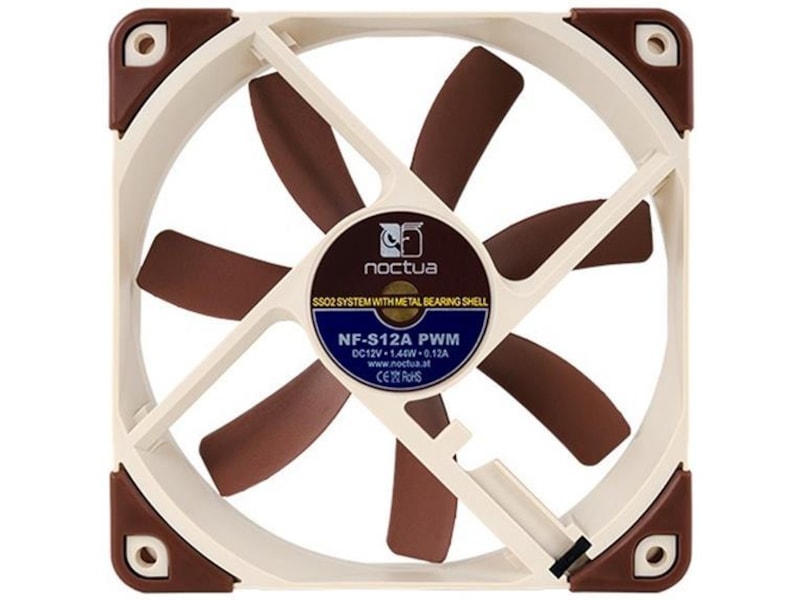

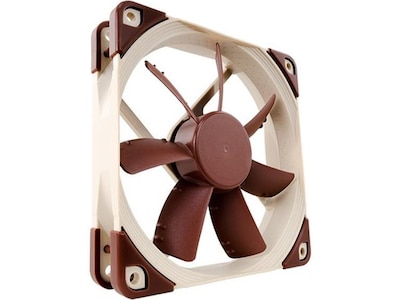

Noctua NF-S12A PWM 120mm Blæser

120x 120 x 25 mm, 300~1200 RPM, 83,2~107.5 m³/h, 10.7~17,8 dBA, 4-Pin PWM

Varenummer: 779026 / Producentens varenr: NF-S12A PWM

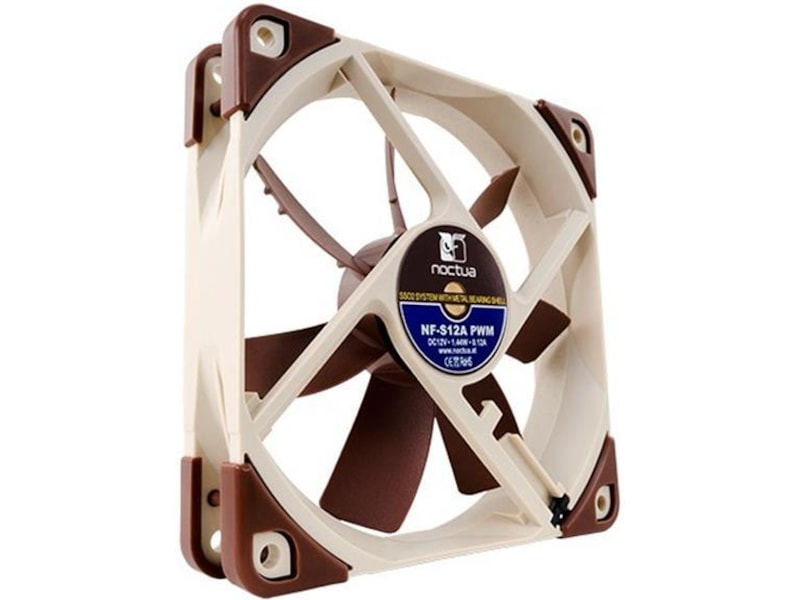

More pictures from Noctua NF-S12A PWM 120mm Blæser

+ fragt fra 59,-
Ikke på lager. 36 stk. Ubekræftet 1.dec.2022 fra producenten.

Noctua NF-S12A PWM 120mm fan.  The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%.

Award-winning S12 design.
The NF-S12A features the third evolution of Noctua’s classic Straight Blade Design that has earned its S12 series countless recommendations from hardware journalists and enthusiasts around the world. Further optimised for even better airflow/noise efficiency, it makes the NF-S12A an ideal quiet case fan.
Anti-Stall Knobs.
The NF-S12A’s Anti-Stall Knobs reduce flow separation phenomena in medium to high impedance situations and thereby increase the fan’s stall margin. This means that the NF-S12A is even more versatile than its renowned predecessor and can achieve better performance on heatsinks and radiators.
AAO Frame.
Noctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency.
Stepped Inlet Design.
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.
Inner Surface Microstructures.
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads.
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Smooth Commutation Drive 2.
The latest version of Noctua’s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-S12A remarkably quiet even at very close distance.
3 speed settings for full flexibility.
Providing 1200, 900 and 700 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-S12A FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.
Extensive Cabling Options.
The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
SSO2 Bearing.
The NF-S12A features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell.
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-S12A sports a CNC milled bearing shell made entirely from brass.
6 years manufacturer’s warranty.
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-S12A features an MTBF rating of more than 150.000 hours and comes with a full 6 years manufacturer’s warranty.

Producentens garanti (måneder) 60
Produkttype Indsats med blæser
Pakke Indhold Ultra-Low-Noise Adaptor (U.L.N.A.), 4 vibrerings isolatorer, forlængerkabel (30 cm)
Bredde 12 cm
Dybde 12 cm
Højde 2.5 cm
EAN 4716123314929
Varmeafleder & blæser
Blæser diameter 120 mm
Blæser-højde 25 mm
Blæser med kugleleje SSO2 leje
Omdrejningshastighed 300-1200 rpm
Luftstrøm 63,3 cfm
Lufttryk 1.19 mm
Støjniveau 17.8 dBA
Stik 4-pins blæser-stikforbindelse
Start Voltage 12 V
Egenskaber Puls-bredde modulation (PWM) support
Monteringspakke Inkluderet
MTBF (forventet tid mellem fejl) 150,000 time(r)
Service & Support Begrænset garanti - 6 år
