BlueWalker PW SNMP Manager Card

SNMP Card offer IP Adress and WebInterface for most convinient monitoring

Varenummer: 804610 / Producentens varenr: 10120505

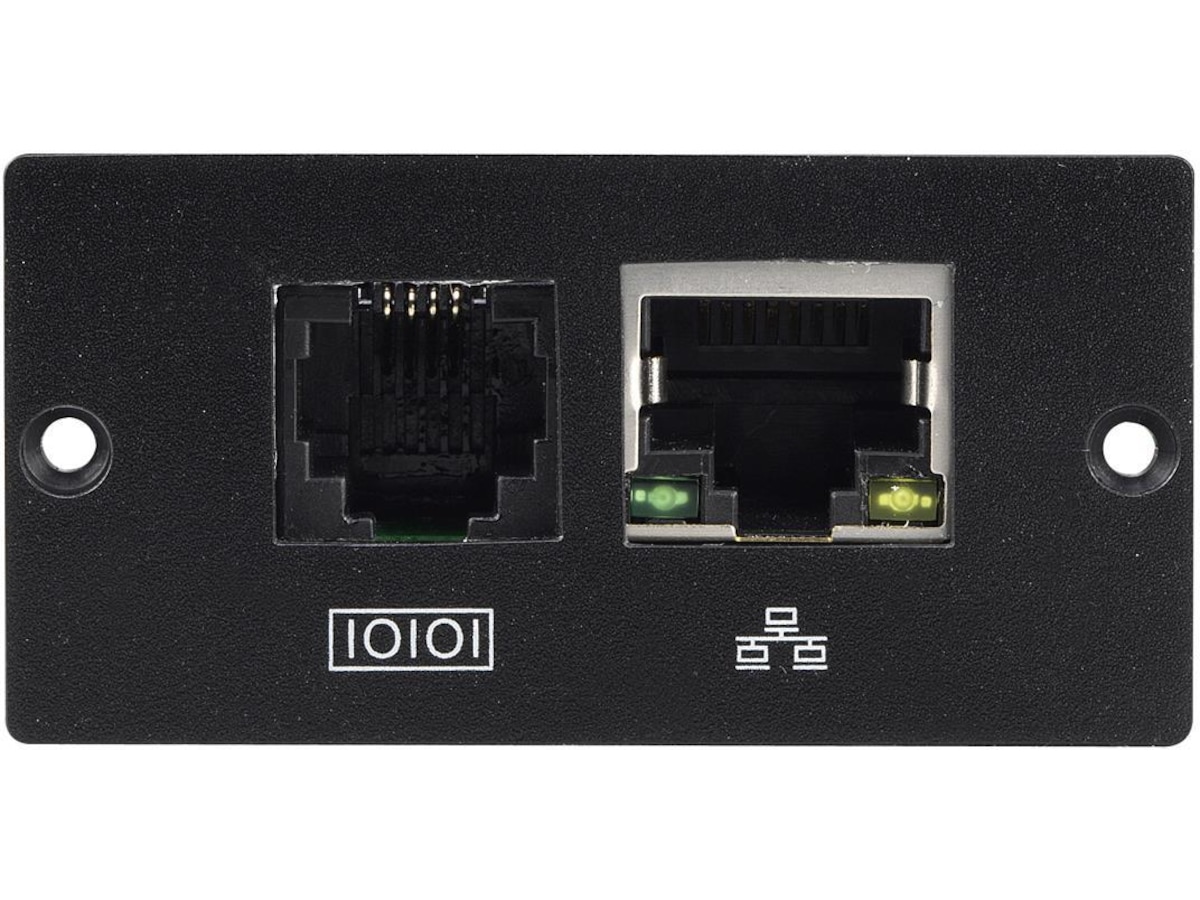

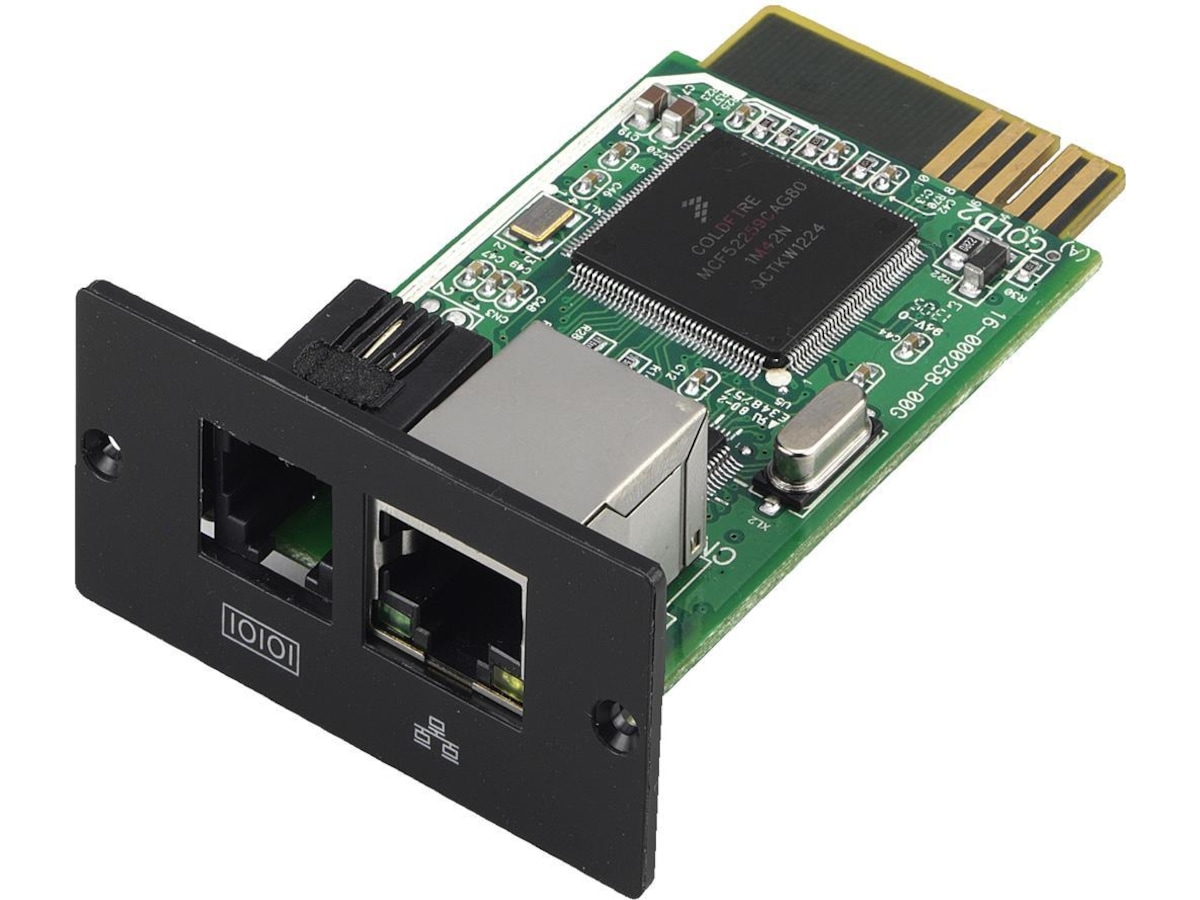

More pictures from BlueWalker PW SNMP Manager Card

+ fragt fra 59,-
1 stk. på lager (leveringstid 2-3 arbejdsdage)

BlueWalker PW SNMP Manager

PowerWalker SNMP manager is a communication solution for UPS monitoring and control. This SNMP manager card allows remote monitor and manage multiple UPSs from anywhere with internet access. Integrated web access will leverage internet capability of SNMP manager to remotely program or shut down UPSs. Equipped with SNMP manager, power conditions of all UPSs can be monitored anytime/anywhere even though the UPS units are located in different floors. Besides, this card also come equipped with easy-to-update firmware feature. Whenever the updated firmware is released, system manager can download it and simply upgrade all with one click.

Product Features:

  • Allows controlling and monitoring of multiple UPSs through RJ45 network connection
  • Real-time dynamic graphs of UPS data
  • Warning notifications via audible alarm, broadcast, mobile messenger, e-mail and SNMP traps
  • Historic data log stored in centralized PC database
  • Simple firmware upgrade with one click
  • Password security protection and remote access management
  • ViewPower Pro software offers another enhanced communication solution for UPS monitoring and control.

Supports following models:

VFI 1000, 1500, 2000, 3000 LCD VFI 1000C, 2000C, 3000C, 6000C, 10000C LCD VFI 1000RM, 1500RM, 2000RM, 3000RM, 6000R, 10000R LCD VFI 10000, 15000, 20000, 30000 CP 3/3

Producentens garanti (måneder) 12
Enhedstype Adapter for fjernadministration
Model Indstiksmodul
EAN 4260074974034
Forbindelsesteknologi Kabling
Kabeltype Ethernet 10Base-T, Ethernet 100Base-TX
Dataforbindelsesprotokol Ethernet, Fast Ethernet
Protokol til fjernadministration SNMP
Statusindikatorer Portstatus, ports transmissionshastighed
Processor / Hukommelse
Processor 1 x Freescale MCF52254
Processors clockhastighed 48 MHz
Flashhukommelse 512 KB
Ekspansion / Konnektivitet
Interface 1 x 100Base-TX - RJ-45
1 - RJ-45
Kompatible åbninger 1 x Ekspansionsholder
Programmer / Systemkrav
Med software ViewPower Pro
Mål og vægt
Bredde 4.7 cm
Dybde 2.3 cm
Højde 1.5 cm
Vægt 35 g
Service & Support Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur 0 °C
Maks. driftstemperatur 40 °C
Fugtighedsgrad ved brug 0 - 95% (ikke-kondenserende)
Oplysninger om kompatibilitet
Designet for PowerWalker VFI 1000 LCD, VFI 10000C LCD, VFI 10000R LCD, VFI 1000RM LCD, VFI 100K CPG PF1 3/3 BX, VFI 1500 LCD, VFI 1500RM LCD, VFI 180K CPG PF1 3/3 BX, VFI 2000 LCD, VFI 2000RM LCD, VFI 3000 LCD, VFI 3000RM LCD, VFI 6000C LCD, VFI 6000R LCD
