Cooler Master Elite 110 Mini-ITX Sort

Varenummer: 813857 / Producentens varenr: RC-110-KKN2

More pictures from

Product test container description

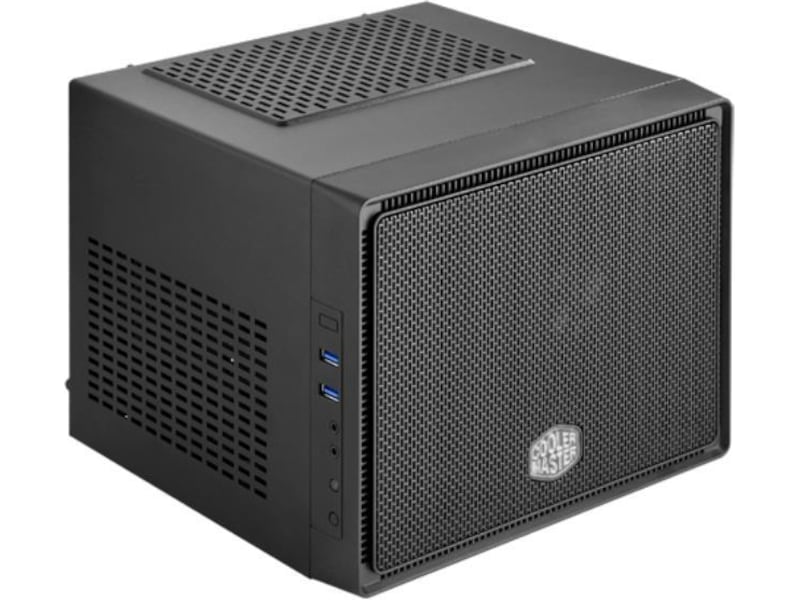

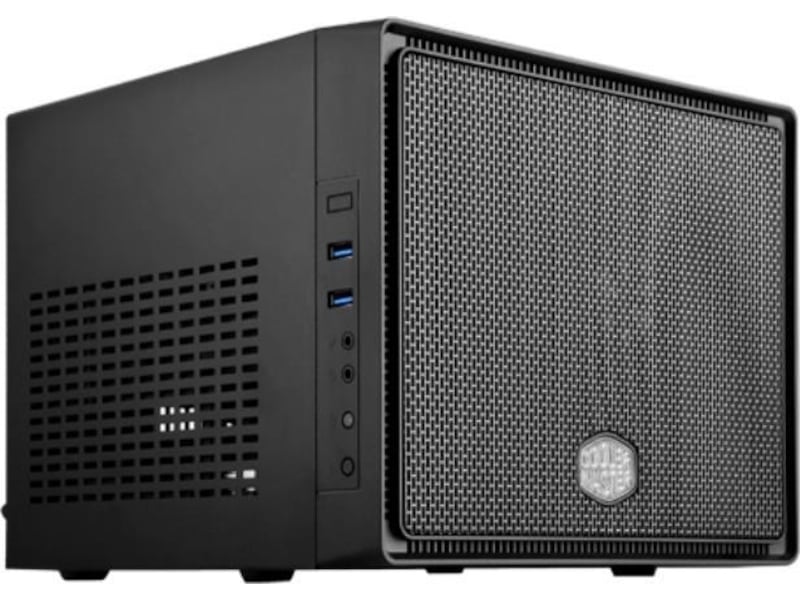

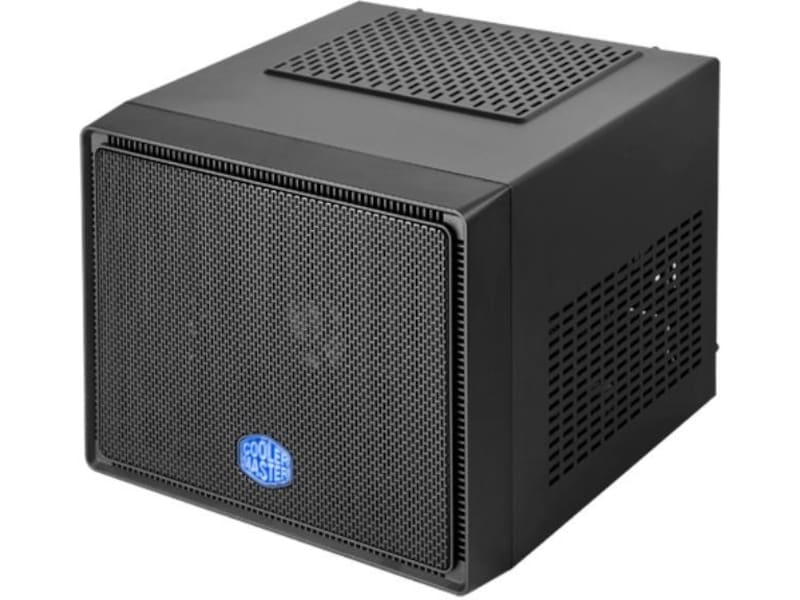

Cooler Master Elite 110 Sort Mini ITX Kabinet

Cube Compact Chassis

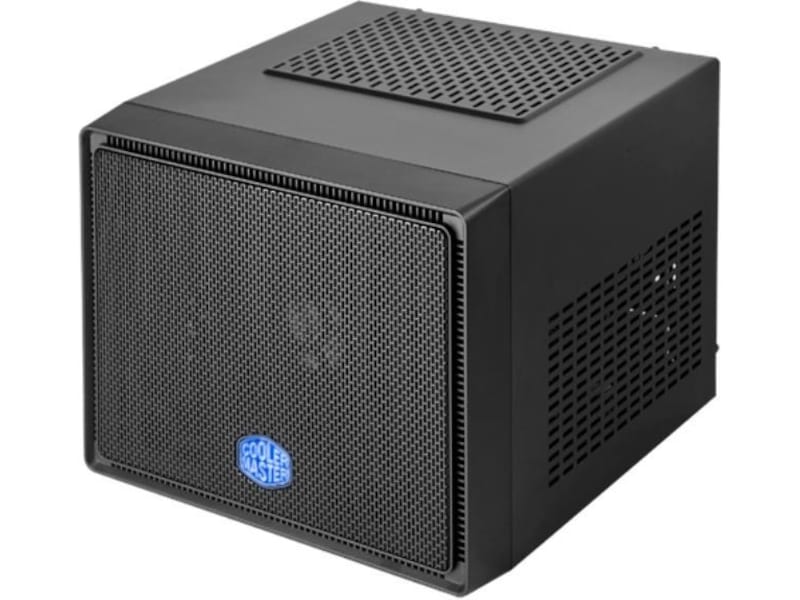

Mini-ITX case with front mesh panel and vents on the top and side panels for better airflow. Supports a 120mm radiator in the front and standard length ATX PSU up to 180mm.

The most compact fully featured Mini-ITX chassis

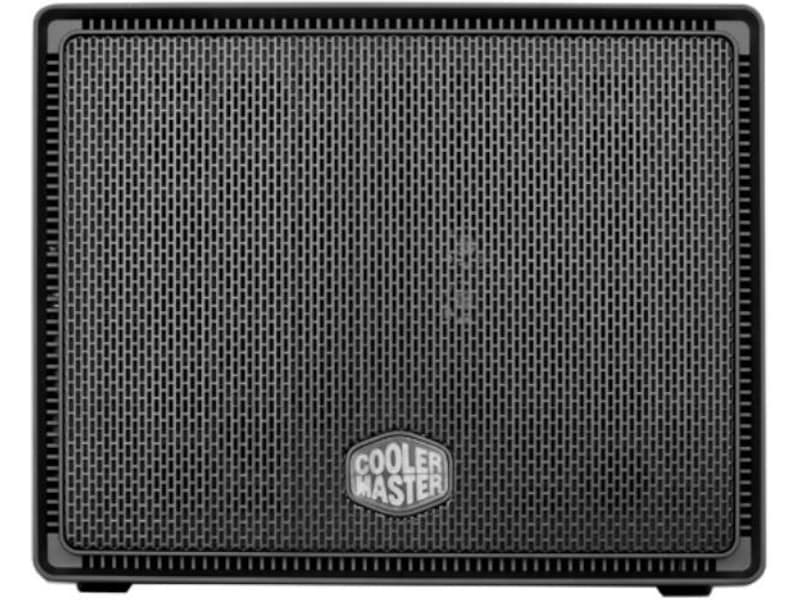

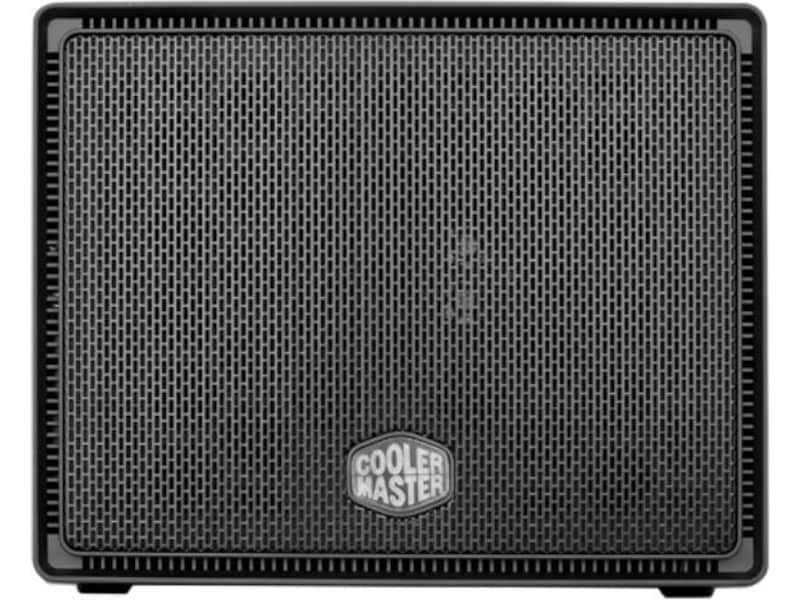

Elite 110 is the most compact fully featured Mini-ITX chassis. A full breathable mesh front panel holds space beneath it for a powerful 120mm All-in-One watercooling radiator. Elite 110 Mini Cube is engineered to fit in the minutest spaces while maintaining support for premium hardware. A pleasing, conservative design helps Elite 110 blend into any home environmt.

Offering no compromises

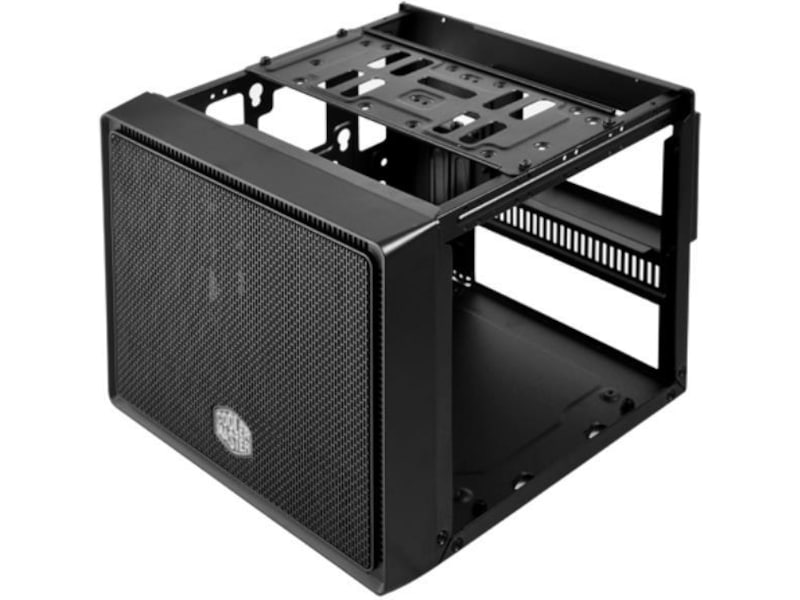

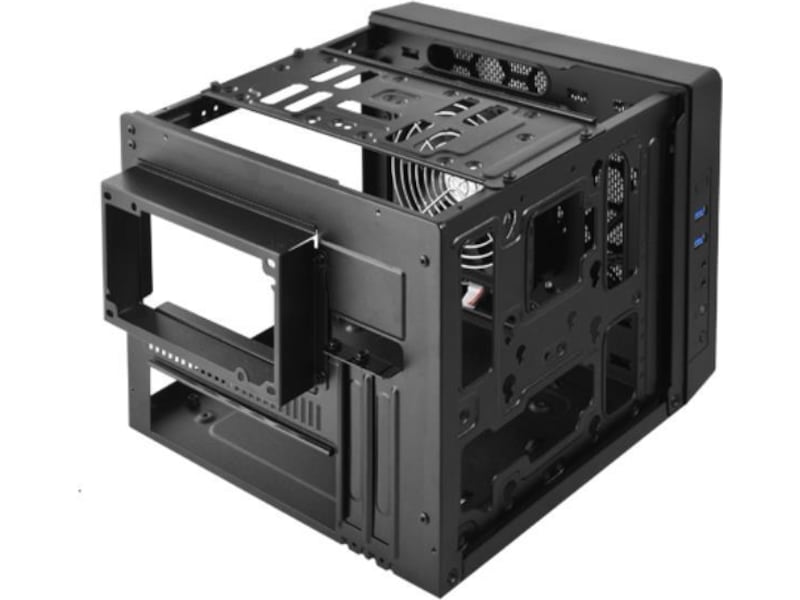

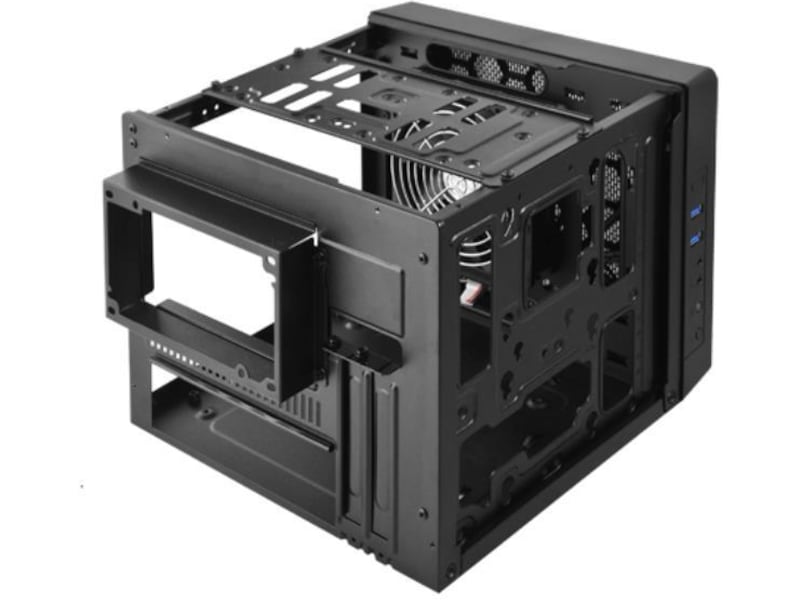

Offering no compromises, Elite 110 is built with an intelligent use of internal space. Mid to high-end graphics cards up to 210mm long can be accommodated easily. A simple, yet effective rear PSU bracket allows Elite 110 owners to easily install long power supplies up to 180mm long. Despite its miniature size, Elite 110 can support a full three hard drives or four SSDs. Elite 110 Mini Cube features full force cooling with its included 120mm front intake fan (compatible with 140mm fans), and 2 x 80mm optional side fans. Users needing quick access to ports will find a rich front.


  • The mini-ITX case with front mesh panel and vents on the top and side panels for better airflow
  • One 120mm fan in the front (included) and Two 80mm fan on the side (optional)

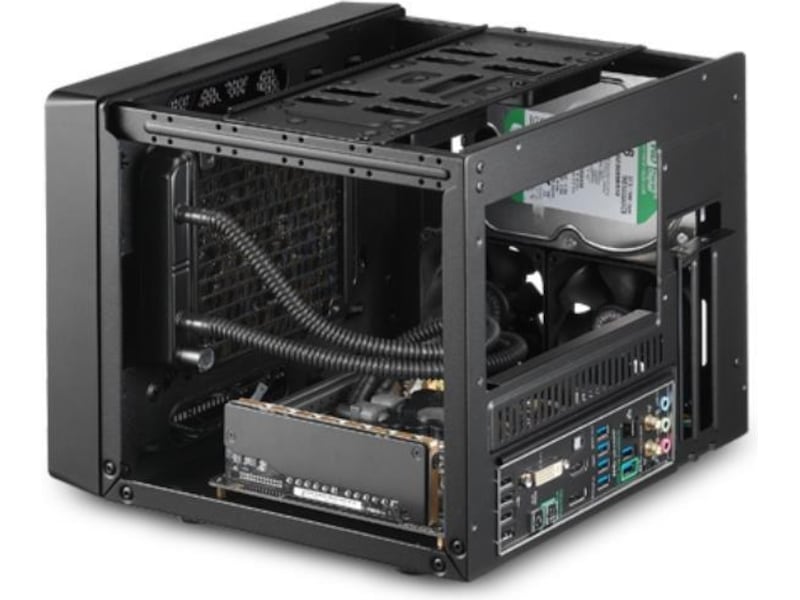

  • Supports a 120mm radiator in the front

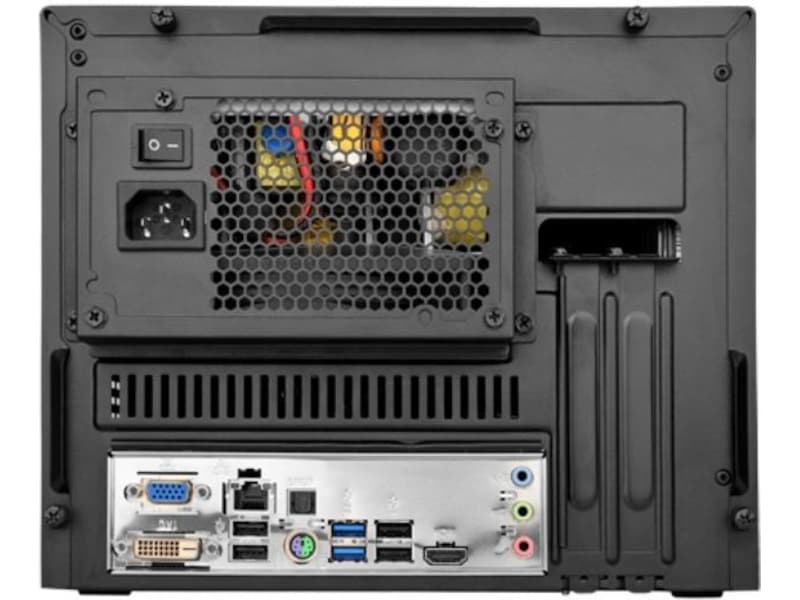

  • Supports standard length ATX PSU up to 180mm
  • Supports graphic card length up to 210mm
  • Storage - up to 3 HDDs / 4 SSDs

Cooling system

  • Front: 120mm fan x 1 (installed, converted to 140mm fan x 1)
  • Side: 80x25mm fan x 2 (optional)
  • CPU cooler height: 76mm

Water cooling compatibility

  • Front: 240mm radiator x 1 (optional)
  • Top: 240mm radiator x 1 (optional)
  • Rear: 120mm radiator x 1 (optional)


  • Mother Board Support: Mini-ITX
  • Power Supply Type: ATX PS2
  • Power length: 180mm (w/ less cable management), 142mm (w/ full cable management)
  • VGA Card Support: 210mm
  • Size (LxWxH)260 x 208 x 280 mm
Producentens garanti (måneder) 24
Model Ultralille formfaktor
Max størrelse på bundkort Mini ITX
Understøttede motherboards Mini-ITX
Specifikationsoverensstemmelse ATX / PS/2
Antal interne bays 3
Farve Midnat sort
Kølesystem Front: 120 mm ventilator x 1 / 1 x 140 mm blæser understøttet
Side: 80 x 80 x 25 mm blæserstativ x 1
Maks. højde for CPU-køler 76 mm
Maks. længde for videokort 210 mm
Egenskaber, systemkabinet Meshed front panel, blå LED
Ekspansion / Konnektivitet
Udvidelses-båse 3 (total) / 3 (fri) x intern - 3.5" x 1/3H
Ekspansionsåbninger 2

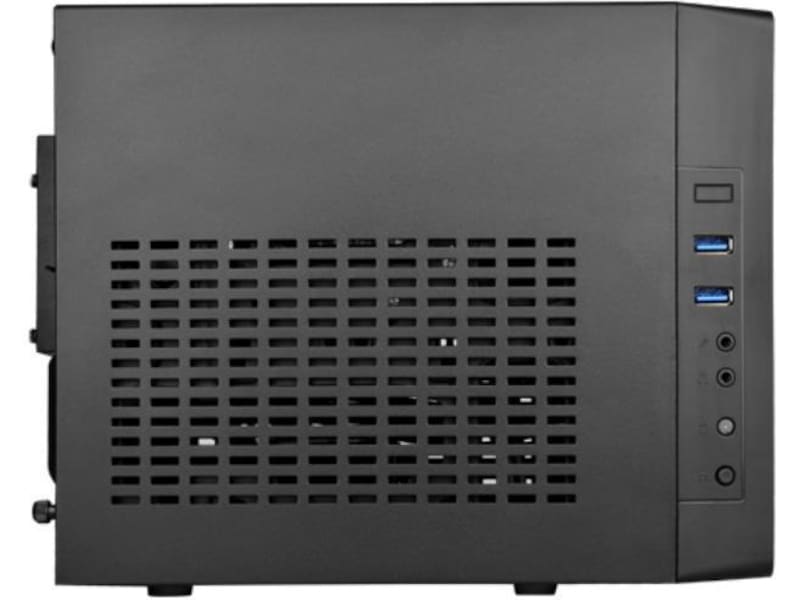

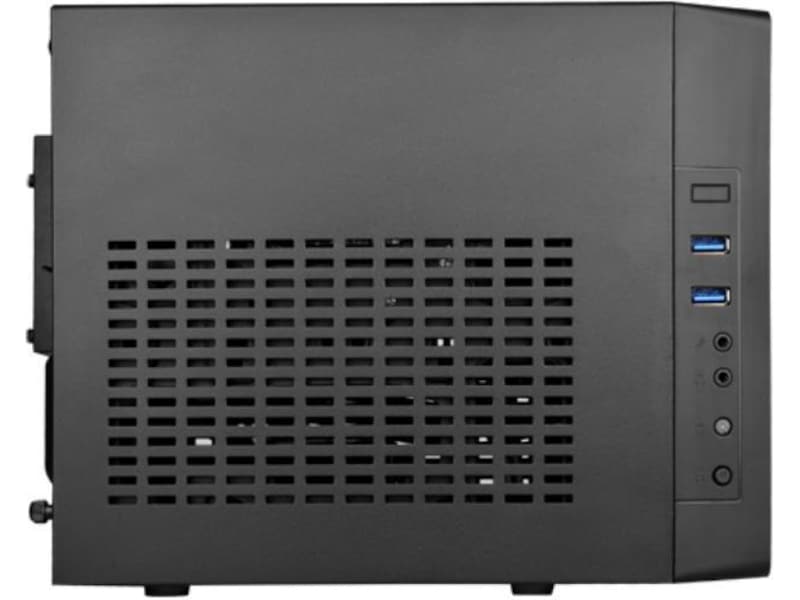

Interface 2 x USB 3.0
1 x mikrofon - mini-jack
1 x audio linje-ud - mini-jack
Maks. antal understøttet 1
Mål og vægt
Bredde 26 cm
Dybde 28 cm
Højde 20.8 cm
Vægt 2.65 kg
