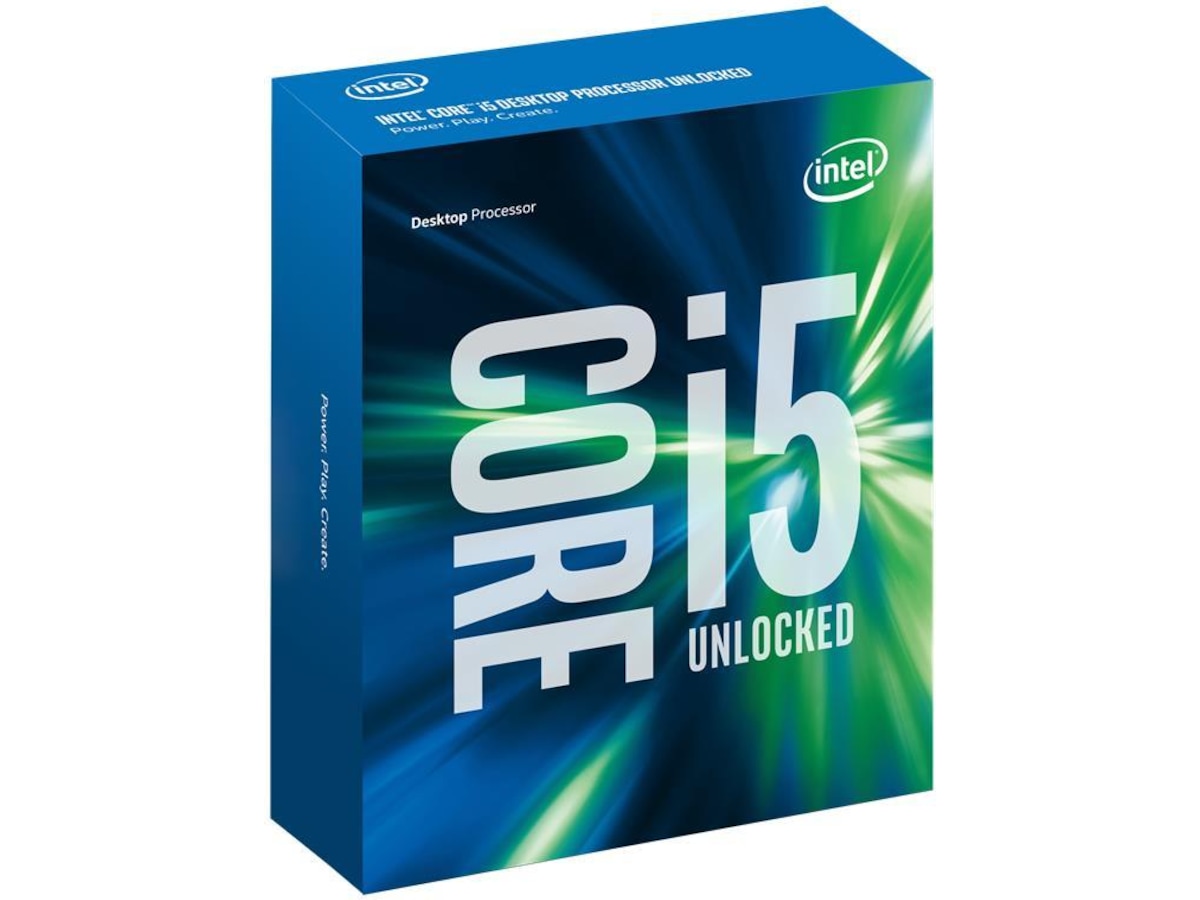

Intel Core i5-6600K Skylake Processor

Varenummer: 850035 / Producentens varenr: BX80662I56600K

More pictures from

TEST SweclockersProduct test container descriptionProduct test container descriptionProduct test container descriptionProduct test container descriptionProduct test container description

Intel Core i5-6600K Skylake

Performance:

  • # of Cores: 4
  • # of Threads: 4
  • Processor Base Frequency: 3.5 GHz
  • Max Turbo Frequency: 3.9GHz
  • TPD: 91 W

Memory Specifications:

  • Max Memory Size (dependent on memory type): 32 GB
  • Memory Types: DDR3L 1600/DDR4 2133
  • Max # of Memory Channels: 2
  • Max Memory Bandwidth: 34.2 GB/s
  • ECC Memory Supported: No

Graphics Specifications:

  • Processor Graphics ‡: Intel® HD Graphics 530
  • Graphics Base Frequency: 350 MHz
  • Graphics Max Dynamic Frequency: 1.15Ghz
  • Graphics Video Max Memory: 1.7 GB
  • Graphics Output: eDP/DP/HDMI/VGA/DVI
  • Execution Units: 4
  • 4K Support: Yes, at 60Hz
  • Max Resolution (HDMI 1.4): 4096x2160@24Hz
  • Max Resolution (DP): 4096x2160@60Hz
  • Graphics Output: eDP/DP/HDMI/VGA/DVI
  • DirectX* Support: 11.2
  • OpenGL* Support: 4.3
  • Intel® Quick Sync Video: Yes
  • Intel® InTru™ 3D Technology: Yes
  • Intel® Wireless Display: Yes
  • Intel® Clear Video HD Technology: Yes
  • Intel® Clear Video Technology: Yes
  • # of Displays Supported ‡: 3
Generelt
Producentens garanti (måneder) 36
Produkttype Processor
Processor
Type / Model Intel Core i5 6600K (6. Gen)
Antal kerner Quad-Core
Antal tråde 4 tråde
Cache 6 MB
Detaljer for cache-hukommelse Smart Cache - 6 MB
Antal processorer 1
Clock-frekvens 3.5 GHz
Max Turbo Speed 3.9 GHz
Kompatibel Processor Tilslutning LGA1151 Socket
Fremstillingsproces 14 nm
Termisk designeffekt 91 W
PCI Express-revision 3.0
PCI Express-konfigurationer 1x16, 2x8, 1x8+2x4
Antal PCI Express-spor 16
DesignEgenskaber Enhanced SpeedStep technology, Execute Disable Bit funktion, Intel Virtualization Technology, Intel 64 Technology, streaming SIMD extensions 4.1, streaming SIMD extensions 4.2, Intel Fast Memory Access, Intel Turbo Boost Technology 2.0, Intel My WiFi Technology, Intel Anti-Theft Technology, Intel AES New Instructions (AES-NI), Intel Virtualization Technology for Directed I/O (VT-d), Idle States, Intel VT-x with Extended Page Tables (EPT), Intel Secure Key, Intel Advanced Vector Extensions 2 (AVX2.0), Intel TSX-NI, Intel OS Guard
Integreret grafik
Type Intel HD Graphics 530
Base frekvens 350 MHz
Maks. Dynamisk Frekvens 1.15 GHz
Maks. understøttet hukommelsesstørrelse 64 GB
Maks. understøttet opløsning 4096x2304@24 Hz (HDMI), 4096x2304@60 Hz (eDP), 4096x2304@60Hz (DP)
Funktioner Intel Clear Video Technology, Intel Clear Video HD Technology, InTRU 3D Technology, Intel Quick Sync Video, Intel Wireless Display (WiDi), Triple Display Capable
Diverse
Pakketype Intel Boxed
Producentgaranti
Service & Support Begrænset garanti - 3 år
